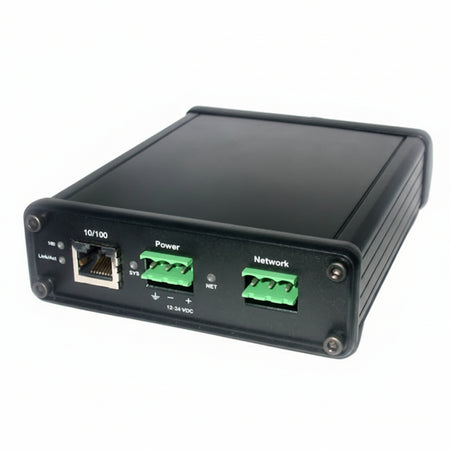

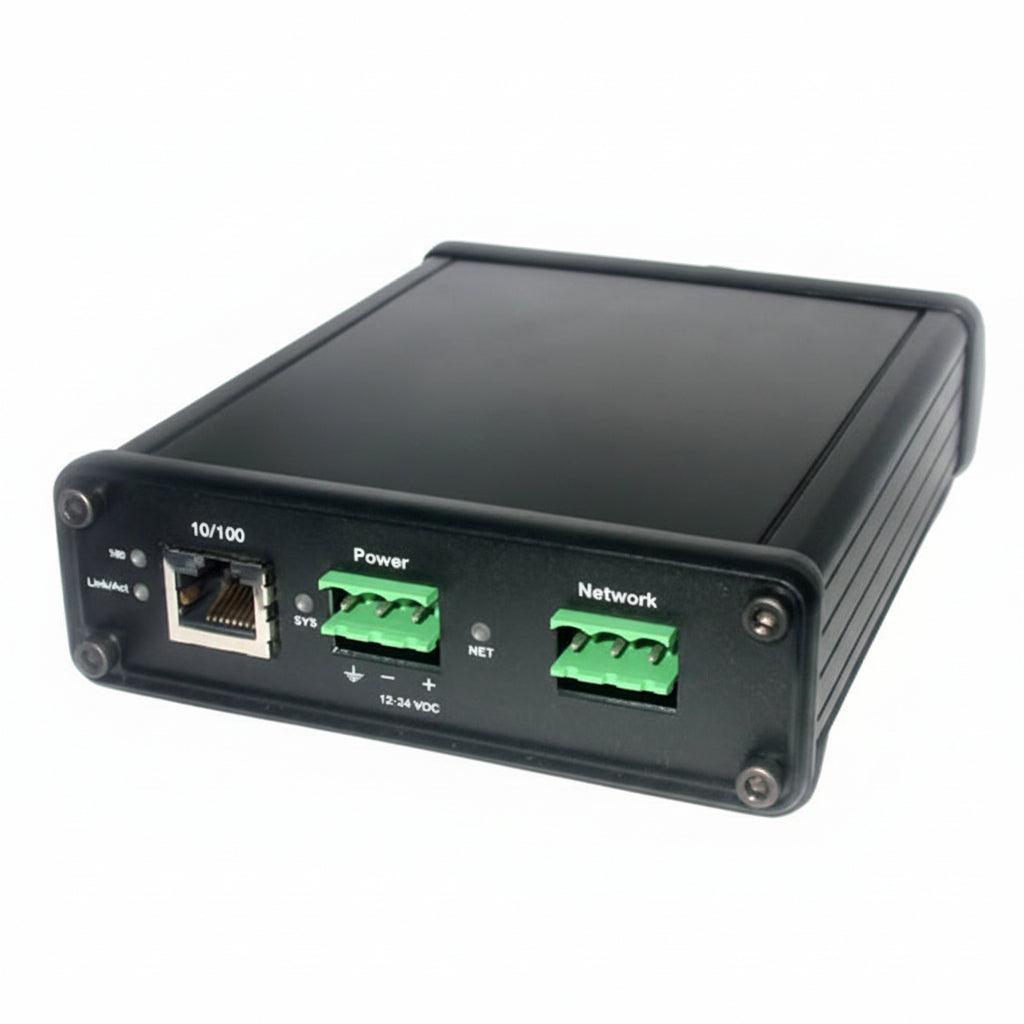

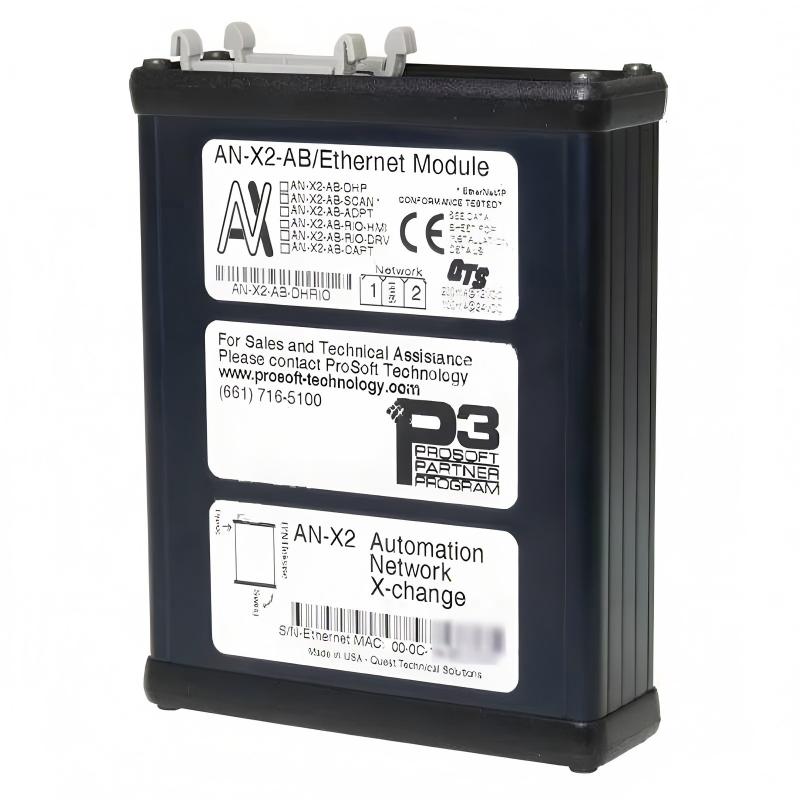

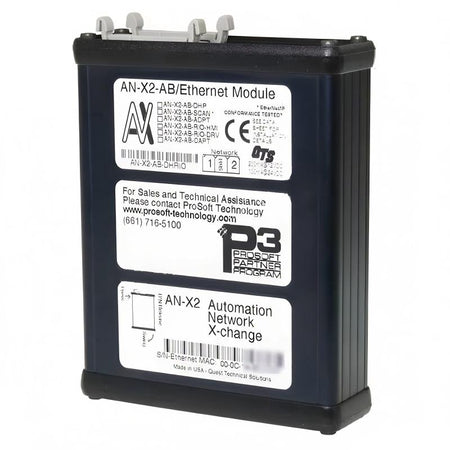

AN-X2-AB-DHRIO official manufacturer specifications
AN-X2-AB-DHRIO
| Drive Mode | Upgrade legacy AB drives on Remote I/O to EtherNet/IP; up to 4 drives; 1/4, 1/2, full rack; all PowerFlex drives |
|---|---|
| HMI Mode | Upgrade legacy PanelViews on Remote I/O/DH+ to PanelView Plus on EtherNet/IP; up to 8 PanelViews |
| Remote I/O Scanner | Replace legacy RIO PLC with ControlLogix/CompactLogix; up to 32 racks; baud 57.6/115.2/230.4 Kbaud; addressing 0–76 octal |
| DH+ Mode | Bridge EtherNet/IP to Data Highway Plus; RSLinx download to PLC5/SLC; all DH+ baud rates |
| Flex I/O Scanner | Replace obsolete 1794-ASB adapters; up to 16 EtherNet/IP connections to 1794-AENT |
| Ethernet Port | 1 RJ45 10/100 Mbps |
|---|---|
| Power Connector | 1 Phoenix 3-pin |
| Network Connector | 1 Phoenix 3-pin |
| Configuration | Built-in web server (diagnostics, config upload, operation mode) |
| Typical Power Consumption | 200 mA @ 12 VDC or 100 mA @ 24 VDC |
|---|---|
| Maximum Power Dissipation | 2.4 W |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | 107 x 126 x 34 mm (4.18 x 4.97 x 1.33 in), not including connectors |
| Humidity | 5% to 95% RH, no condensation |
| Mounting | Desktop or DIN Rail mountable |
| Replaces | AN-X-AB-SCAN, AN-X-AB-RIO-DRV, AN-X-AB-RIO-HMI, AN-X-AB-DHP, AN-X-AB-ADAPT, AN-X-AB-DHRIO |
|---|---|
| PLC Compatibility | ControlLogix, CompactLogix, PLC5, SLC |
| Drives | All PowerFlex drives on EtherNet/IP |
| HMI | PanelView Plus, PanelView Plus 6, PanelView Plus 7 |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
|---|---|
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
