Allen-Bradley

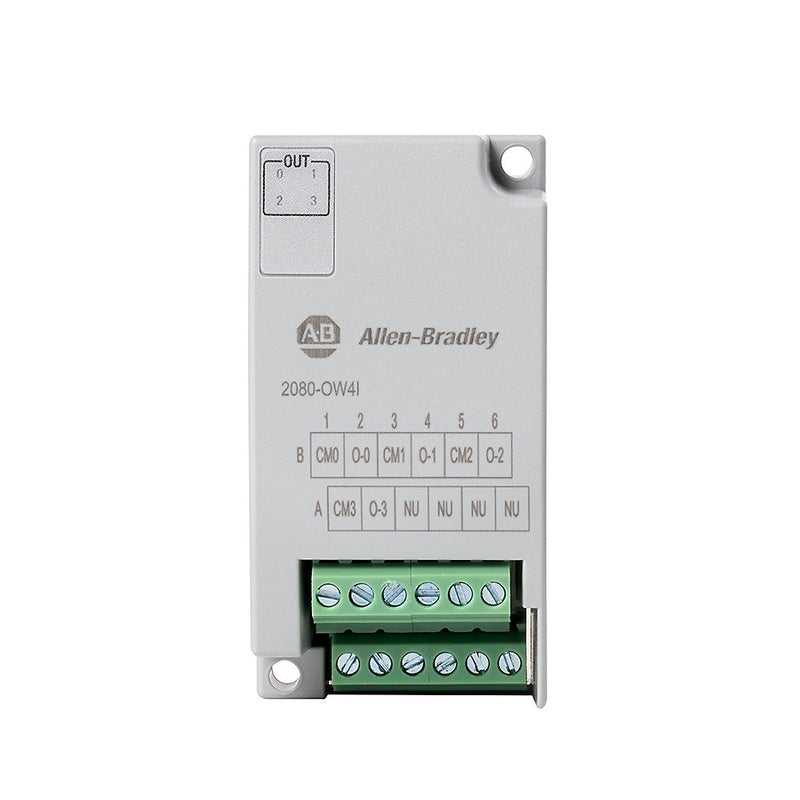

Allen-Bradley 2080-OW4I | Relay & Timer

SKU: 2080-OW4I
(3)
$99.75
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Micro800 4 Point Relay Output

2080 Micro800 System, 4-ch Relay Output Module

Specifications

  • I/O Isolation: Isolated
  • I/O Status Indication: LED
  • Backplane power: 3.3V DC @ 38mA
  • Digital inputs configurable: false
  • Digital outputs configurable: false
  • Enclosure type rating: None (open-style)
  • Initial contact resistance of relay, max: 30 mohm
  • Inrush current: <120mA @ 3.3V, <120mA @ 24V
  • Insulation stripping length: 5 mm
  • Isolation voltage: 240V (continuous), reinforce insulation type, between output channels and output channels to backplane type tested for 60 s @ 1480V AC Outputs to Outputs, Outputs to Backplane
  • Minimum load per point: 10 mA
  • Mounting torque: 0.2 nm
  • Nonoperating temperature: 40 to 85 ¡ãC
  • North American temperature code: T4
  • Number of I/O: 4-channel relay output
  • Operating temperature: -20 to 65 ¡ãC
  • Output current, inductive: 1.0 A steady state @ 5...28V DC @ 0.93A steady state @ 30V DC @ 0.5A steady state @ 48V DC @ 0.22A steady state @ 125V DC @ 2.0A steady state, 15 A make @ 125V AC, PF - cos ¦È = 0.4, 2.0 A steady state, 7.5 A make @ 240V AC, PF - cos ¦È = 0.4
  • Output current, resistive: 2A @ 5...30V DC, 0.5A @ 48V DC, 0.22A @ 125V DC, 2A @ 125V AC, 2A @ 240V AC
  • Output delay time, max: OFF to ON: 10 ms, ON to OFF: 10 ms
  • Output power, resistive, max: 250VA for 125V AC resistive loads, 480VA for 240V AC resistive loads, 60VA for 30V DC resistive loads, 24VA for 48V DC resistive loads, 27.5VA for 125V DC resistive loads
  • Pilot duty rating: C300, R150
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • Relay contact, break: 28VA @ 24V DC maximum volts, 0.35 power factor
  • Relay contact, continuous: 2.0A @ 120V AC maximum volts, 0.35 power factor
  • Relay contact, make: 7.5A @ 240V AC maximum volts, 0.35 power factor
  • Shock: Operating: 10 g
  • SIL according to IEC 61508: None
  • Status indicator: 4 yellow
  • Surrounding air temperature, max: 65 ¡ãC
  • Terminal base screw torque, max: 0.19 Nm (1.7 in-lb.), using a 2.5 mm
  • Type of digital output: Relay
  • Type of electric connection: Screw connection
  • Type of output voltage: DC
  • Type of voltage (input voltage): DC
  • Vibration: 2.0 G @ 10¡­500 Hz
  • Wire size: 0.05...1.31 mm2 (30...16 AWG) solid copper wire rated @ 90 ¡ãC (194 ¡ãF ) insulation maximum
  • Wire type: Copper
  • Wiring category: 2 - on signal ports, 2 - on power ports
