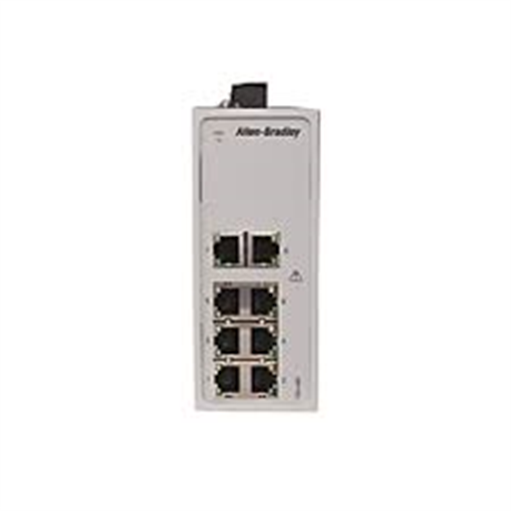

The Allen-Bradley 1783-BMS10CGN is a stratix managed ethernet switch. The listed technical data shows communication via True, rated IP30, based on the manufacturer's datasheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Type Designation | |
| SW Type | Full |
| Isolation voltage (continuous), basic insulation type, DC power ports to ground, DC power ports to ethernet ports, and DC power ports to alarm ports | 50 V |
| Protection type | Alarm not rated |
| Wiring category on console and alarm ports | 3 |
| Power Supply | |
| Maximum insulation, DC power connection | 1.2 mm |
| Power consumption, maximum | 20 W |
| Wire strip length, DC power connection | 6.3±0.5 |
| Screw torque, power and alarm terminals | 0.23 nm |
| Inputs & Outputs | |
| Combo ports | 2 GE |
| Alarm relay at 30V DC | 1 A |
| Alarm relay at 48V DC | 0.5 A |
| Number of combination ports 10/100/1000 Mbps | 2 |
| Number of ports 10/100 Mbps RJ45 | 8 |
| Total number of ports | 10 |
| Total Ports | RJ45 Ports(1) |
| EtherNet/IP tap 3 copper ports | EtherNet/IP tap • 2 copper ports • 1 fiber port |
| Communication & Interfaces | |
| Wire size, ground connection, stranded copper wire, minimum | 4 mm² |
| Mechanical | |
| Mounting method | DIN rail (top hat rail) |
| Approximate weight | 1.38 kg |
| Depth | 13.58 cm |
| Height | 12.95 cm |
| Screw torque, ground terminal, maximum | 0.96 nm |
| Width | 9.14 cm |
| Degree of protection (IP) | IP30 |
| Housing base material | Open-style |
| Environmental | |
| Temperature, surrounding air, maximum | 60 °C |
| Other | |
| CIP Sync (IEEE 1588) | True |
| Conformal coating | False |
| Network | Ethernet |
| ESD immunity, IEC 61000-4-2, air discharges | 15 kV |
| ESD immunity, IEC 61000-4-2, contact discharges | 8 kV |
| Emissions, CISPR11 (IEC 61000-6-4) | Class A |
| Nominal position | T4 |
| APPLICATION_TECHNIQUES_enet-at007_-en-p | ENET-AT007 |
| APPLICATION_TECHNIQUES_enet-at006_-en-p | ENET-AT006 |
| PROFILE_migrat-pp043_-en-p | MIGRAT-PP043 |
| REFERENCE_MANUAL_enet-rm002_-en-p | ENET-RM002 |
| 16 | 16 FE |
| 353 g | 524 g |
| 8 (3 | 6 mm .38 in. |
| 144 (5.67 | mm in.) |
| 125 mA @ 24V DC | 200 mA @ 24V DC |
| 3 W | 4.8 W |
| T5 | T4A |
| Yes | No |
Model variants, options and firmware revisions can affect fitment. Before ordering the Allen-Bradley 1783-BMS10CGN stratix managed ethernet switch, share your existing part number or project requirements and our team will cross-reference comparable in-stock Allen-Bradley units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
A: Each 1783-BMS10CGN is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: In-stock orders placed before 14:00 ship the same business day. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
