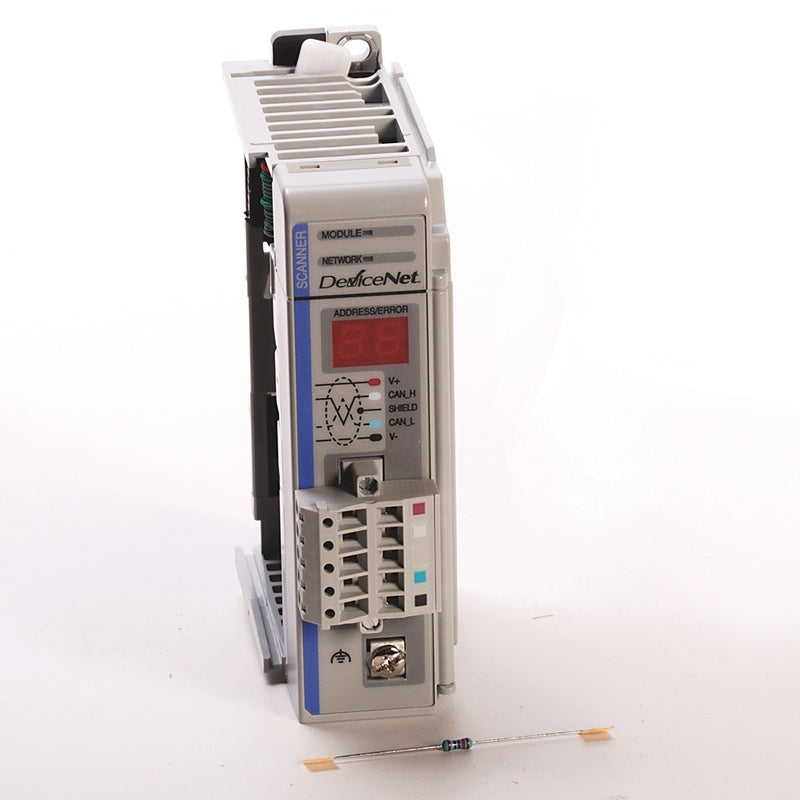

Allen-Bradley 1769-SDN | Industrial Automation Component

SKU: 1769-SDN
(2)
$113.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

CompactLogix DeviceNet Scanner Module

DeviceNet Scanner

Specifications

  • Depth: 87mm, 3.43"
  • Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • Current draw: 440mA @ 5.2V DC
  • DeviceNet communication rate: 125 Kbps (500 m max), 250 Kbps (250 m max), 500 Kbps (100 m max)
  • DeviceNet connector torque: 0.56 nm
  • DeviceNet current draw: 110mA @ 24V DC Class 2/SELV
  • DeviceNet current range: 11...25V DC
  • EFT/B immunity: ¡À2kV @ 5kHz on communications ports
  • Emissions: CISPR 11 (IEC 61000-6-4): Group 1, Class A
  • Enclosure type rating: None (open-style)
  • ESD immunity: 6 kV contact discharges, 8 kV air discharges
  • Height: 118 mm
  • IO link master: false
  • Isolation voltage: 30V (continuous), basic insulation type, DeviceNet to backplane, Type tested at 710V DC @ 60s
  • Module location: DIN rail or panel mount
  • Mounting screw torque: 1.16 Nm (10 in-lb) - use M4 or #8 screws
  • Nonoperating temperature: -40 to 85 ¡ãC
  • Number of HW-interfaces industrial Ethernet: 1
  • Number of nodes, max: 64 nodes
  • Operating temperature: 0 to 60 ¡ãC
  • Ports: 1 DeviceNet open-style 5-pin linear plug
  • Power dissipation: 4.7 W
  • Power supply distance rating: 4 modules
  • Radiated RF immunity: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 1 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
  • Radio standard Bluetooth: false
  • Radio standard GPRS: false
  • Radio standard GSM: false
  • Radio standard UMTS: false
  • Radio standard Wi-Fi 802.11: false
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G
  • Slot width: 1
  • Suitable for safety functions: false
  • Supporting protocol for ASI: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for CAN: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: true
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for other bus systems: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for TCP/IP: false
  • Surge transient immunity: ¡À2 kV line-earth (CM) on communication ports
  • Surrounding air temperature, max: 60 ¡ãC
  • Type of data transmission: Other
  • Vibration: 2 G @ 10...500 Hz
  • Weight, approx: 0.28 kg
  • Width: 50 mm
  • Wire category: 2 - on communication ports
  • Wire size: 802.3 compliant shielded or unshielded twisted pair
  • With optical interface: false
  • With potential separation: false
