Allen-Bradley 1762-OV32T | Industrial Automation Component

MicroLogix 32 Point Module

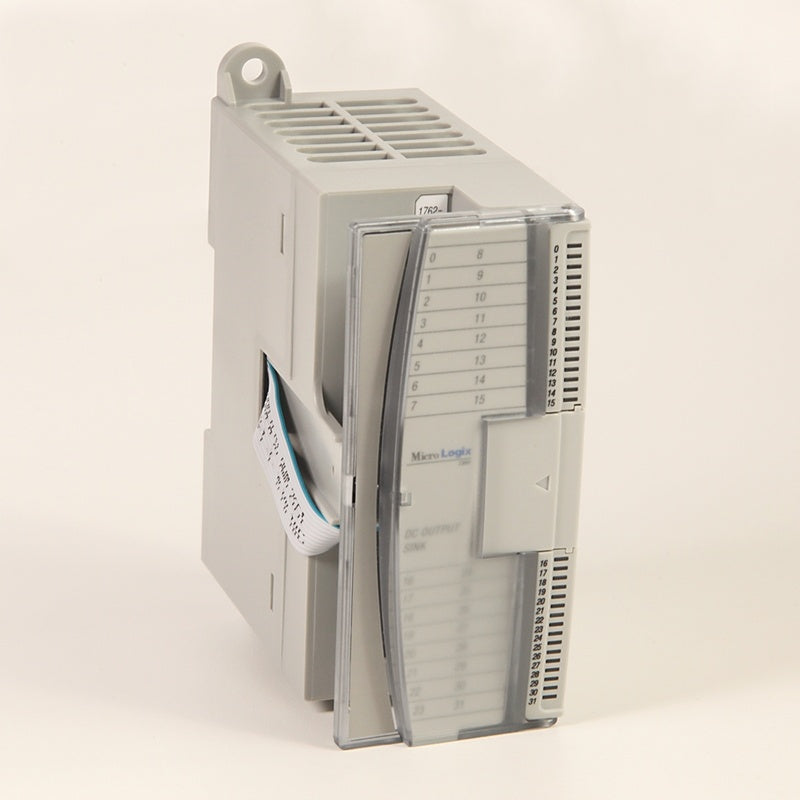

1762 MicroLogix 1200 System, 32 Point 24 VDC Sink Output Module

Specifications

• Consist Of: Connectors
• Depth: 87
• digital output modules: 32 Point 24V DC Sink Output
• Height: 90
• I/O Isolation: Isolated
• I/O Status Indication: LED
• Output: 32 Point, 24V DC Sink
• Temperature Rating: -20¡­60 ¡ãC (-4¡­140 ¡ãF)
• Altitude: 2000 m
• Bus current draw, max: 175mA @ 5V DC
• Conducted RF immunity: IEC61000-4-6: 10V, 0.15¡­80 MHz
• Continuous current per common, max: 2.0A @ 60¡ãC (140 ¡ãF)
• Continuous current per module, max: 4.0A @ 60¡ãC (140 ¡ãF)
• Continuous current per point, max: 0.5A @ 60¡ãC (140 ¡ãF
• Digital inputs configurable: false
• Digital outputs configurable: false
• EFT/B immunity: IEC61000-4-4: 2kV @ 5kHz on signal ports
• ESD immunity: EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect
• Hazardous environment class: Hazardous Location, Class I, Division 2 Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213, ANSI/ISA-12.12.01)
• Heat dissipation, max: 2.7 W @ 26.4V DC
• Isolated groups: Group 1: Outputs 0...15, Group 2: Outputs 16...31 (internally, connected to common)
• Number of digital outputs: 32
• Off-state leakage current, max: 0.1mA @ 26.4V DC
• On-state current, min: 1 mA
• On-state voltage drop, max: 0.5A @ 0.3V DC
• Operating humidity: 5...95% noncondensing
• Operating temperature: -20 to 65 ¡ãC
• Operating voltage: 10.2...26.4V DC
• Output group to backplane isolation: Verified by one of the following dielectric tests: 1200V AC @ 2s or 1697V DC @ 2s, 75V DC working voltage (IEC Class 2 reinforced insulation)
• Output group to output group isolation: Verified by one of the following dielectric tests: 1200V AC @ 2s or 1697V DC @ 2s, 75V DC working voltage (IEC Class 2 reinforced insulation)
• Power supply distance rating: 6 (The module may not be more than 6 modules away from the power supply.)
• Radiated and conducted emissions: EN50081-2: Class A
• Radiated RF immunity: IEC61000-4-3: 10V/m, 80...2700 MHz, 80% Alitude modulation
• Redundancy: false
• Shock: Operating: 30G panel mounted, 3 pulses per axis Relay ops: 7G
• Short-circuit protection, outputs available: false
• Signal delay, resistive load, max: ON delay: 0.5 ms OFF delay: 4.0 ms
• Storage temperature: -40 ¡ãC
• Suitable for safety functions: false
• Surge current, max: 2.0 A (Repeatability is once every 2 s at 60 ¡ãC (140 ¡ãF) for 10 ms)
• Surge transient immunity: IEC61000-4-5: 2 kV common mode, 1 kV differential mode
• Type of digital output: Relay
• Type of electric connection: Screw connection
• Type of output voltage: DC
• Vibration: Operating: 10...500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hr per axis Relay ops: 1.5G
• Voltage category: 24V DC sink
• Weight: 200 g
• Width: 40.4 mm
