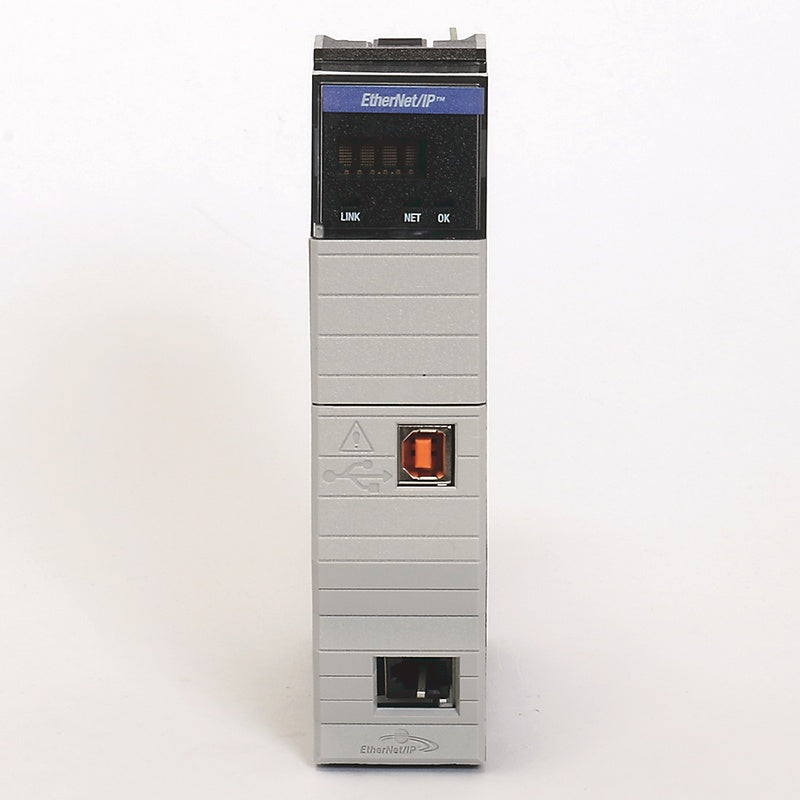

Allen-Bradley 1756-EN2T | Communication & I/O Module
Allen-Bradley 1756-EN2T | Communication & I/O Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Allen-Bradley

Allen-Bradley 1756-EN2T | Communication & I/O Module

SKU: 1756-EN2T
(3)
$888.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

CLX ENet/IP 100M

EtherNet/IP communication module, 10/100M twisted pair, 128 TCP connections

Specifications

  • Application: EtherNet/IP
  • Communication: Ethernet/IP
  • Display: Digital
  • Enclosure: None (open-style)
  • Mounting: Chassis
  • Sub Brand: ControlLogix
  • Type: Communication Module
  • Interface: 1 Copper RJ45 (10/100 Mbps)
  • Number Of Channels: 1
  • ATEX temp code: T4
  • CIP unconnected messages: 128 + 128 (backplane + Ethernet)
  • Communication rate: 10/100 Mbps
  • Conducted RF immunity: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • Connections supported, max: TCP: 128, CIP: 256 (CIP connections can be used for all explicit or all implicit applications. for exAle, a 1756-ENBT module has a total of 128 CIP connections that can be used for any combination of connections.)
  • Current draw: 1A @ 5.1V DC, 3mA @ 24V DC
  • EFT/B immunity: ¡À3kV @ 5kHz on Ethernet ports
  • Emissions: CISPR 11: Class A
  • Enclosure type rating: None (open-style)
  • ESD immunity: 6 kV contact discharges, 8 kV air discharges
  • Ethernet cable: 802.3 compliant shielded or unshielded twisted pair
  • Ethernet ports: 1 Ethernet RJ45 Category 5
  • IO link master: false
  • Isolation voltage: 30V (continuous), Basic Insulation Type, Ethernet to Backplane, USB to Backplane, and USB to Ethernet(Applies only to these modules/series: 1756-EN2T/D, 1756-EN2TR/C,1756-EN3TR/B), Type tested at 980V AC @ 60s
  • Module location: Chassis based, any slot
  • Operating temperature: 0 ¡ãC
  • Power dissipation: 5.1 W
  • Radiated RF immunity: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3V/m with 1 kHz sine-wave 80% AM from 2000...6000 MHz
  • Radio standard Bluetooth: false
  • Radio standard GPRS: false
  • Radio standard GSM: false
  • Radio standard UMTS: false
  • Radio standard Wi-Fi 802.11: false
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G, Nonoperating: 30 G
  • Slot width: 1
  • Storage temperature: -40 ¡ãC
  • Supporting protocol for ASI: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for CAN: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: false
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for EtherNet/IP: true
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for other bus systems: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for TCP/IP: true
  • Surge transient immunity: ¡À2 kV line-earth (CM) on Ethernet ports
  • Surrounding air temperature, max: 60 ¡ãC
  • Thermal dissipation: 17.4 btu/h
  • Vibration: 2 G @ 10...500 Hz
  • Wiring category: 2 - on Ethernet ports, 3 - on USB ports
  • With optical interface: false
  • With potential separation: false
  • Product Series: D
