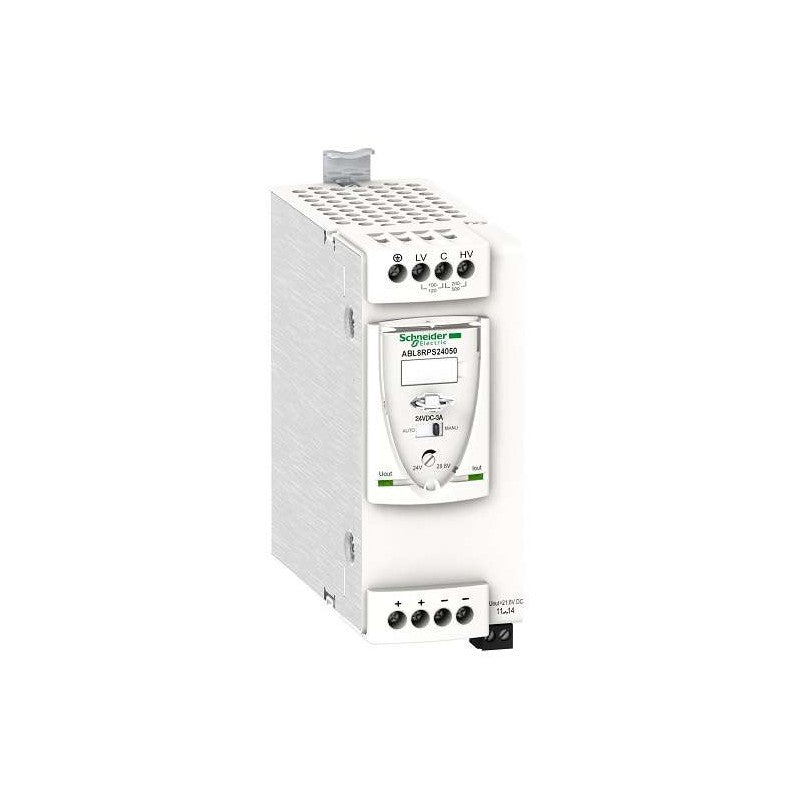

Schneider Electric ABL8RPS24050 | Power Supply Unit

ABL8RPS24050 Schneider Electric - Schneider Electric ABL8RPS24050 Regulated Switch Mode Power Supply. The Schneider Electric ABL8RPS24050 is a regulated switch mode power supply from the Phaseo ABL8 series. It accepts 1 or 2-phase AC input from 100 to 500V and delivers a stable 24V DC output at 5A with 120W rated power. The power supply features power factor correction (PFC), 87% efficiency, and an adjustable output voltage range of 24 to 28.8V. It offers a power reserve of 150% nominal rating and includes diagnostic contact and LED indicators for troubleshooting.

• Brand: Schneider Electric
• Category: Power Supplies
• Product Type: Regulated Switch Mode Power Supply
• Series: Phaseo ABL8
• Input Voltage: 100-120V AC single phase, 200-500V AC phase to phase
• Input Voltage Limits: 85-132V / 170-550V
• Network Frequency: 47-63Hz
• Output Voltage: 24V DC (adjustable 24-28.8V)
• Output Current: 5A
• Rated Power: 120W
• Efficiency: 87%
• Inrush Current: 30A for 2ms
• Power Factor Correction: Yes (IEC 61000-3-2)
• Power Reserve: 150% of nominal for short time
• Protections: Overload, overvoltage, short-circuit, undervoltage, thermal
• Mounting: DIN Rail
• Dimensions: 125 x 56 x 143 mm
• Protection Rating: IP20
• Operating Temperature: -25 to 60 degrees C (with derating above 50 degrees C)
• Isolation: 4kV
• Output Noise: <= 200mV
• Hold Up Time: >= 18ms
• Wire Connection: Screw terminals, 22-12 AWG
• Certifications: UL 508, CSA C22.2 No. 60950-1, CE, IEC 62368-1
• Compliance: RoHS3 Compliant
• Warranty: 18 months

Ideal for supplying DC voltage to automation equipment in industrial applications including conveying, packaging, control systems, and machine automation requiring reliable 24V DC power.
