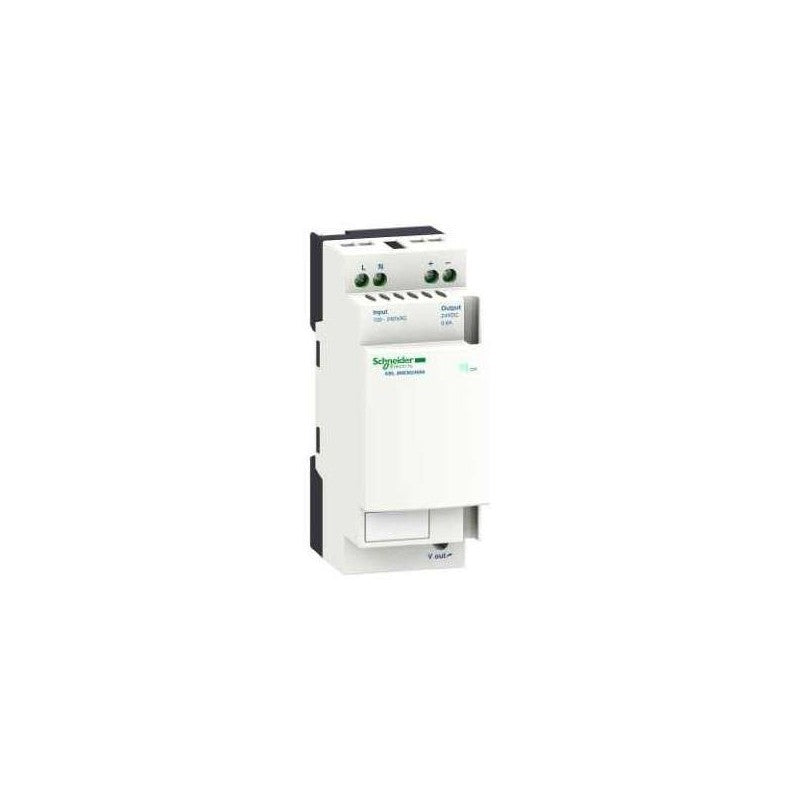

Schneider Electric ABL8MEM24012 | Power Supply Unit

ABL8MEM24012 Schneider Electric - Schneider Electric ABL8MEM24012 Regulated Switch Mode Power Supply. The Schneider Electric ABL8MEM24012 is a modular regulated switch mode power supply from the Phaseo ABL8ME series. It accepts 1 or 2-phase AC input from 100 to 240V and delivers a stable 24V DC output at 1.2A with 30W rated power. The power supply features 82% efficiency, adjustable output voltage of 22.2 to 28.8V, and integrated fuse input protection. It includes short-circuit protection with automatic electronic reset and a front LED diagnostic indicator.

• Brand: Schneider Electric
• Category: Power Supplies
• Product Type: Regulated Switch Mode Power Supply
• Series: Phaseo ABL8ME
• Input Voltage: 100-240V AC single phase or phase to phase, 120-250V DC
• Input Voltage Limits: 85-264V
• Network Frequency: 47-63Hz
• Output Voltage: 24V DC (adjustable 22.2-28.8V)
• Output Current: 1.2A
• Rated Power: 30W
• Efficiency: 82%
• Inrush Current: 20A
• Cos Phi: 0.5
• Input Protection: Integrated fuse (not interchangeable)
• Output Protection: Short-circuit with automatic electronic reset
• Power Dissipation: 6.6W
• Line and Load Regulation: +/- 3%
• Residual Ripple: 250mV
• Holding Time: >= 10ms at 100V, >= 150ms at 230V
• Mounting: DIN rail or panel
• Dimensions: 59 x 54 x 90 mm
• Weight: 0.195kg
• Protection Rating: IP20
• Operating Temperature: -25 to 55 degrees C (without derating), 55-70 degrees C (with derating)
• Operating Position: Vertical
• Output Coupling: Parallel, series
• Marking: CE
• Compliance: RoHS Compliant

Designed for supplying DC voltage to PLC and automation system equipment control circuits in industrial, commercial, and residential applications requiring compact power solutions.
