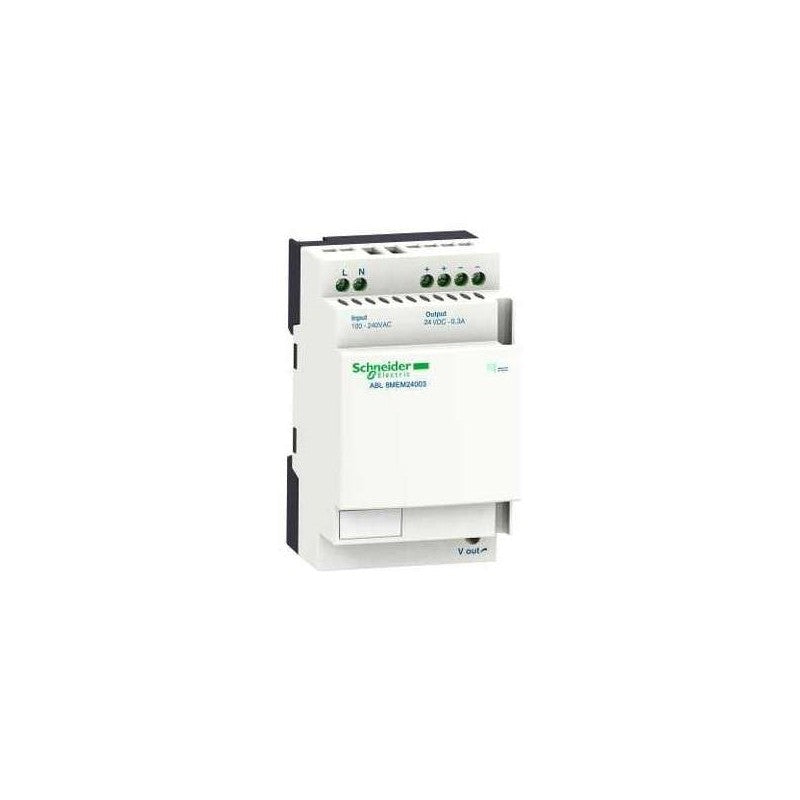

Schneider Electric ABL8MEM24003 | Power Supply Unit

ABL8MEM24003 Schneider Electric - Schneider Electric ABL8MEM24003 Regulated Switch Mode Power Supply. The Schneider Electric ABL8MEM24003 is a modular regulated switch mode power supply from the Phaseo ABL8ME series. It accepts 1 or 2-phase AC input from 100 to 240V and delivers a stable 24V DC output at 0.3A with 7W rated power. The power supply features 78% efficiency, adjustable output voltage of 22.2 to 28.8V, and integrated fuse input protection. It includes thermal and short-circuit protection with very compact dimensions.

• Brand: Schneider Electric
• Category: Power Supplies
• Product Type: Regulated Switch Mode Power Supply
• Series: Phaseo ABL8ME
• Input Voltage: 100-240V AC single phase or phase to phase, 120-250V DC
• Input Voltage Limits: 85-264V
• Network Frequency: 47-63Hz
• Output Voltage: 24V DC (adjustable 22.2-28.8V)
• Output Current: 0.3A
• Rated Power: 7W
• Efficiency: 78%
• Inrush Current: 20A
• Cos Phi: 0.5
• Input Protection: Integrated fuse (not interchangeable)
• Output Protection: Short-circuit, thermal
• Power Dissipation: 2W
• Line and Load Regulation: +/- 3%
• Residual Ripple: 250mV
• Holding Time: >= 10ms at 100V, >= 150ms at 230V
• Mounting: DIN rail (35x15mm or 35x7.5mm) or panel
• Weight: 0.1kg
• Protection Rating: IP20
• Operating Temperature: -25 to 55 degrees C (without derating), 55-70 degrees C (with derating)
• Operating Altitude: 2000m
• Operating Position: Vertical
• Output Coupling: Parallel, series
• Marking: CE
• Certifications: cCSAus, CSA C22.2
• Compliance: RoHS Compliant

Designed for supplying DC voltage to PLC and automation system equipment control circuits in applications requiring very low-power 24V DC supply, including individual sensor supply and small indicator circuits.
