Schneider Electric 12020 | Power Supply Unit
Schneider Electric 12020 | Power Supply Unit

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric ABL8MEM12020 | Power Supply Unit

SKU: ABL8MEM12020
(4)
$69.00
-13% $79.35 $69.00
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

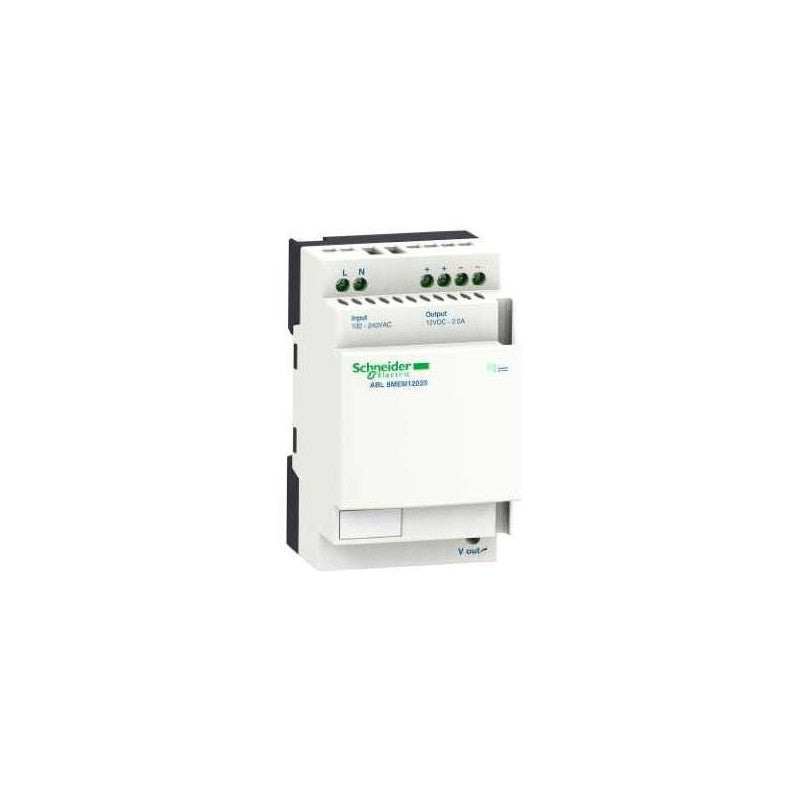

ABL8MEM12020 Schneider Electric - Schneider Electric ABL8MEM12020 Regulated Switch Mode Power Supply. The Schneider Electric ABL8MEM12020 is a modular regulated switch mode power supply from the Phaseo ABL8ME series. It accepts 1 or 2-phase AC input from 100 to 240V and delivers a stable 12V DC output at 2.1A with 25W rated power. The power supply features 80% efficiency, adjustable output voltage of 11.4 to 15V, and integrated fuse input protection. It includes short-circuit protection with automatic reset.

  • Brand: Schneider Electric
  • Category: Power Supplies
  • Product Type: Regulated Switch Mode Power Supply
  • Series: Phaseo ABL8ME
  • Input Voltage: 100-240V AC single phase or phase to phase, 120-250V DC
  • Input Voltage Limits: 85-264V
  • Network Frequency: 47-63Hz
  • Output Voltage: 12V DC (adjustable 11.4-15V)
  • Output Current: 2.1A
  • Rated Power: 25W
  • Efficiency: 80%
  • Inrush Current: 20A
  • Cos Phi: 0.5
  • Input Protection: Integrated fuse (not interchangeable)
  • Output Protection: Short-circuit
  • Power Dissipation: 6.2W
  • Line and Load Regulation: +/- 3%
  • Residual Ripple: 250mV
  • Holding Time: >= 10ms at 100V
  • Mounting: DIN rail or panel
  • Weight: 0.195kg
  • Protection Rating: IP20
  • Operating Temperature: -25 to 55 degrees C (without derating), 55-70 degrees C (with derating)
  • Output Coupling: Parallel, series
  • Marking: CE
  • Compliance: RoHS Compliant

Designed for supplying DC voltage to PLC and automation system equipment requiring 12V DC supply, including relay coils, indicators, and low-voltage control circuits.
