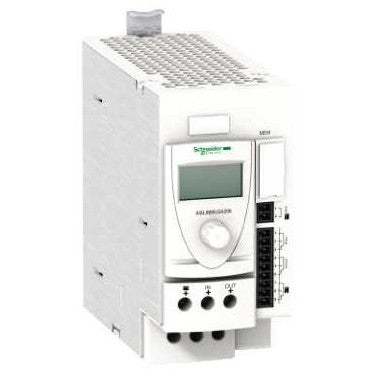

ABL8BBU24200 Schneider Electric - Battery Control Module. Battery control module from the Phaseo ABL8 series, designed for regulated switch-mode power supplies with 24VDC output and 20A current rating.
-
Brand: Schneider Electric
-
Category: Battery Control Module
-
Input Voltage: 24-28.8V DC
-
Output Voltage: 24V DC
-
Output Current: 20A
-
Power Dissipation: 7W
-
Input Voltage Limits: 22-30V DC
-
Residual Ripple: <= 200mV
-
Protection Rating: IP10
-
Operating Temperature: -25 to 60 C
-
Mounting: DIN Rail (35mm)
-
Termination: Screw Terminal
-
Diagnostics: LCD screen, 3 C/O relay contacts
-
Output Protection: Overload and short-circuit
-
Weight: 0.5 kg
-
Series: Phaseo ABL8
Controls battery backup systems for 24VDC industrial power supplies, providing diagnostic monitoring and automatic switchover.
