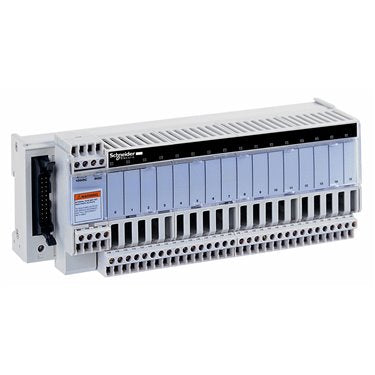

ABE7S16S2B0 Schneider Electric - Telefast ABE7 Solid State Output Relay Sub-base 16 Channel. The ABE7S16S2B0 is a solid state output relay sub-base from the Modicon ABE7 Telefast range, featuring 16 output channels with 0.5A per channel at 24V DC. It includes fault detection with overload and short-circuit indication. The sub-base uses removable screw terminal blocks and supports DIN rail or screw mounting. Designed for PLC output interfacing with guaranteed state 0 and state 1 signal levels.

  • Brand: Schneider Electric
  • Category: PLC I/O Module
  • Range: Modicon ABE7 Telefast
  • Product Type: Solid state output relay sub-base
  • Number of Channels: 16
  • Rated Supply Voltage: 24V DC
  • Current per Channel: 0.5 A
  • Maximum Current per Output Common: 8 A
  • Relay Type: Soldered solid state relay
  • Terminal Block: Removable, screw type
  • Fault Detection: Overload, short-circuit
  • Fault Indication: Yes
  • Mounting: DIN rail (35mm) or screw mounting
  • Width: 206 mm
  • Weight: 403.70 g
  • Operating Temperature: -5 to 60 degrees C
  • Response Time: <=0.02 ms (state 1 to 0), <=0.1 ms (state 0 to 1)
  • Maximum Switching Current: 500 mA (DC-12, DC-13)
  • Certifications: CSA, DNV, EAC, GL, UL
  • RoHS Status: Compliant

PLC output interfacing, industrial automation control systems, discrete output distribution for Modicon PLCs
