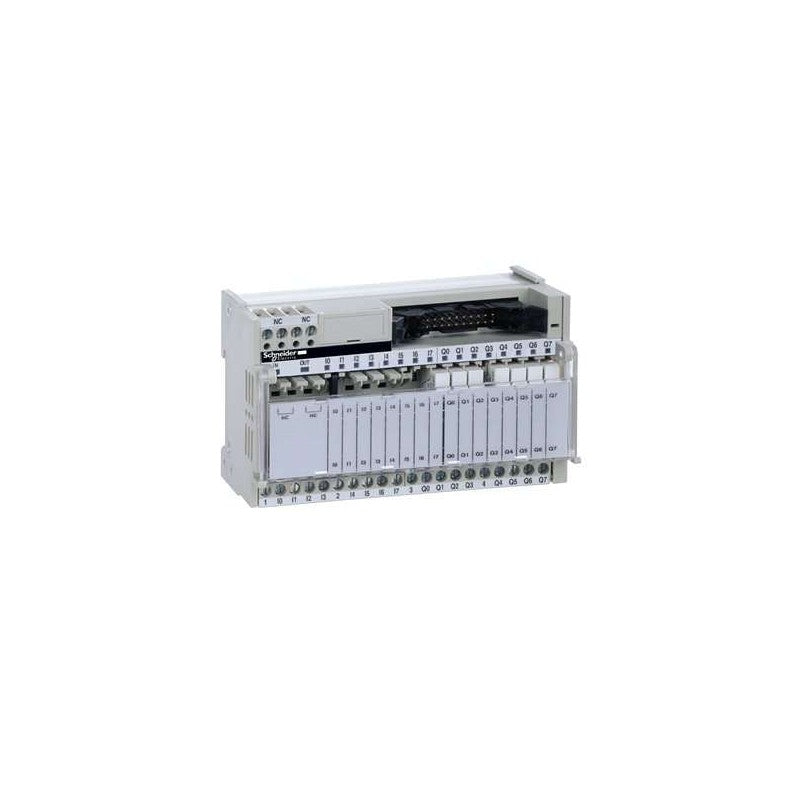

Schneider Electric ABE7R16T111 | Relay & Timer

ABE7R16T111 Schneider Electric - Electromechanical Relay Sub-Base. Sub-base with plug-in electromechanical relay from the Modicon ABE7 series, featuring 16 channels with normally open contacts and 5mm relay width.

• Brand: Schneider Electric
• Category: Relay Module
• Product Type: Relay Sub-Base
• Number of Channels: 16
• Contact Type: 1 NO (Normally Open)
• Supply Voltage: 19-30V DC
• Maximum Supply Current: 1A
• Current per Output Common: <= 5A
• Current per Module: <= 12A
• Mounting: DIN Rail (35mm) / Surface Mount
• Termination Style: Screw Terminal
• Protection Rating: IP2x
• Operating Temperature: -5 to 60 C
• Approvals: BV, CSA, DNV, GL, LROS, UL
• Weight: 0.6 kg
• Series: Modicon ABE7 / Telefast
• Compatibility: ABR7S11

Enables rapid connection of I/O modules in PLC automation systems with pre-wired HE10 connector interface.
