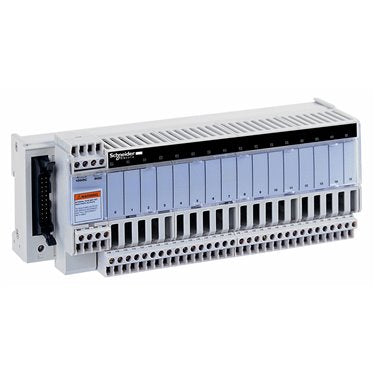

Schneider Electric ABE7R08S111 | Relay & Timer

ABE7R08S111 Schneider Electric - Soldered Electromechanical Relay Sub-Base. Sub-base with soldered electromechanical relay from the Modicon ABE7 Telefast series, featuring 8 channels with 12A rated contacts for industrial automation control.

• Brand: Schneider Electric
• Category: Relay Module
• Product Type: Soldered Relay Sub-Base
• Number of Channels: 8
• Coil Voltage: 24V DC
• Rated Contact Current: 12A
• Switching Voltage: 250V AC / 30V DC (Max)
• Maximum Switching Load: 3000VA / 360W
• Coil Type: Non-Latching
• Mounting: DIN Rail
• Termination Style: Screw Terminal
• Protection Rating: IP2x
• Width: 84mm
• Operating Temperature: -5 to 60 C
• Approvals: CSA, DNV, EAC, GL, UL
• Weight: 0.252 kg
• Series: Modicon ABE7 / Telefast

Enables rapid connection of I/O modules in PLC automation systems with pre-wired HE10 connector interface.

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
