Schneider Electric ABE7H16S43 | Relay & Timer

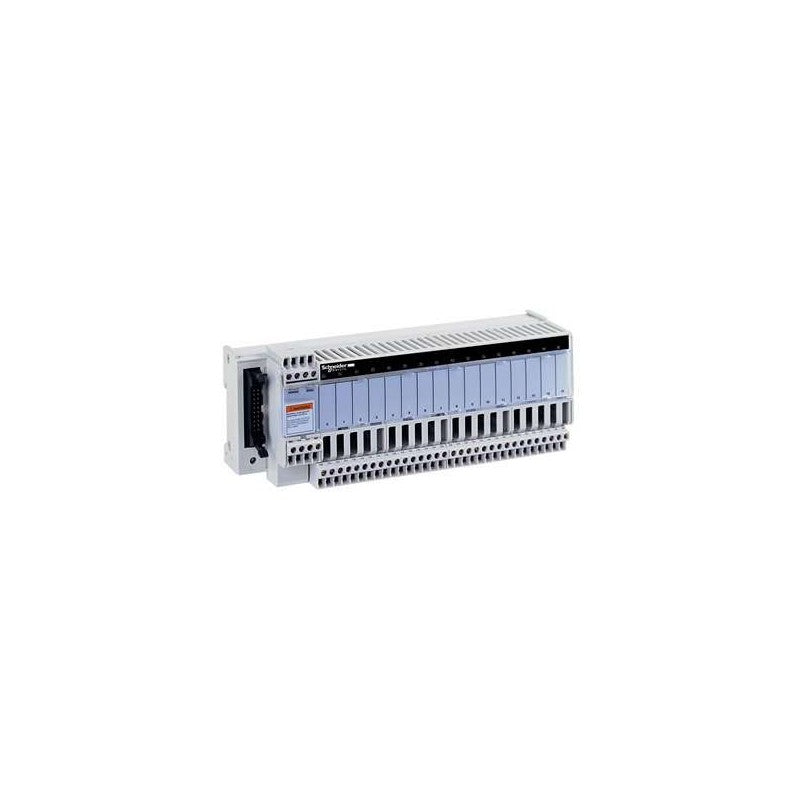

ABE7H16S43 Schneider Electric - Passive Discrete I/O Sub-Base. Passive connection sub-base from the Modicon ABE7H series, featuring 16 channels with switch disconnector per channel and LED indicators for channel status and blown fuse monitoring.

• Brand: Schneider Electric
• Category: I/O Module
• Product Type: Passive Discrete I/O Sub-Base
• Number of Channels: 16
• Supply Voltage: 19-30V DC
• Maximum Supply Current: 1.8A
• Current per Channel: 0.125A
• Channel Protection: 1 switch disconnector per channel
• Short-Circuit Protection: 1A internal fuse + 0.125A fuse per channel
• Connector Type: HE-10, 20 pins
• Mounting: DIN Rail (35mm) / Screw
• Protection Rating: IP2x
• Width: 206mm
• Operating Temperature: -5 to 60 C
• Approvals: BV, CSA, DNV, GL, LROS, UL, EAC
• Series: Modicon ABE7H / Telefast

Pre-wired system for PLC I/O connection with per-channel fuse protection and LED status monitoring.
