Schneider Electric ABE7H16R11 | Relay & Timer

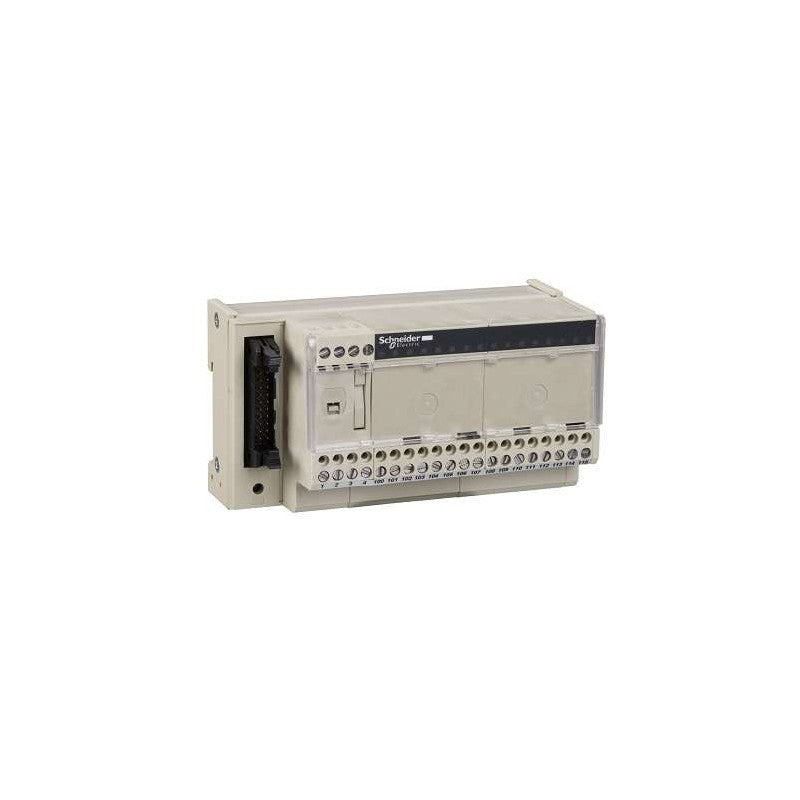

ABE7H16R11 Schneider Electric - Passive Connection Sub-Base with LED. Passive connection sub-base from the Modicon ABE7H series, featuring 16 channels with 1 terminal per channel and LED indicators for channel status and power monitoring.

• Brand: Schneider Electric
• Category: I/O Module
• Product Type: Passive Discrete I/O Sub-Base
• Number of Channels: 16
• Terminals per Channel: 1
• Number of Horizontal Rows: 1
• Supply Voltage: 19-30V DC
• Maximum Supply Current: 1.8A
• Current per Channel: 0.5A
• Short-Circuit Protection: 2A internal fuse
• Connector Type: HE-10, 20 pins
• Mounting: DIN Rail (35mm) / Screw
• Protection Rating: IP2x
• Width: 125mm
• Operating Temperature: -5 to 60 C
• Approvals: BV, CSA, DNV, GL, LROS, UL
• Weight: 0.274 kg
• Series: Modicon ABE7H / Telefast

Pre-wired system for PLC I/O connection with LED status monitoring in industrial automation applications.
