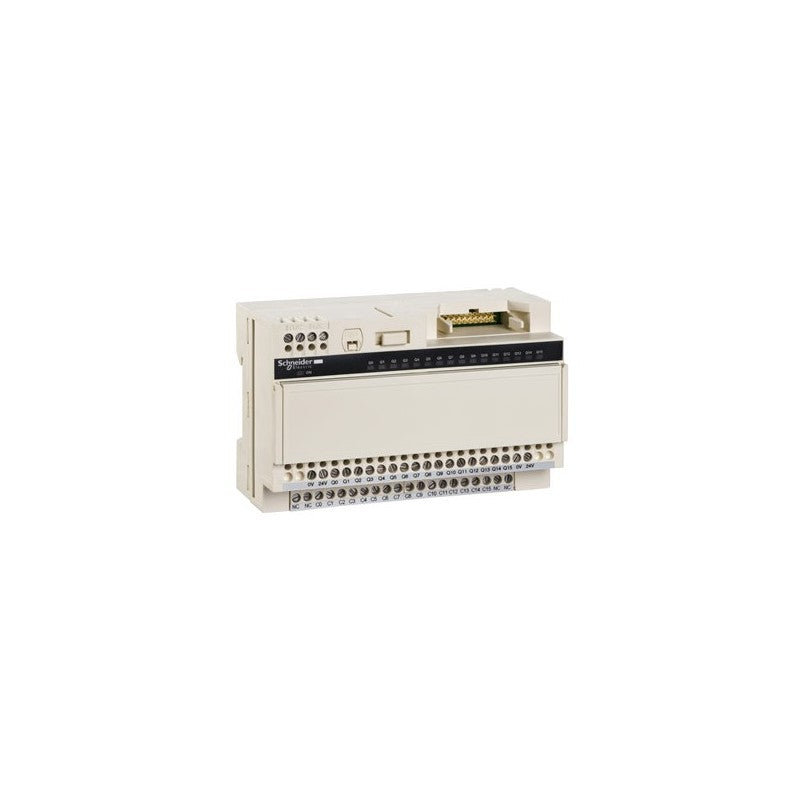

Schneider Electric ABE7E16SPN22 | Relay & Timer

ABE7E16SPN22 Schneider Electric - Connection Sub-Base for Twido Extension. Connection sub-base from the ABE7 series designed for Twido modular controller extension, featuring 16 outputs with fuses and source logic for industrial automation systems.

• Brand: Schneider Electric
• Category: I/O Module
• Product Type: Connection Sub-Base for Twido Extension
• Number of Channels: 16
• Output Type: Discrete Output (Source)
• Supply Voltage: 24V DC
• Supply Current: <= 2A
• Switched Current: 100mA per output
• Current per Output Common: 1.6A
• Short-Circuit Protection: 2A internal fuse + 0.125A per channel
• Connector Type: HE-10, 20 pins
• Mounting: DIN Rail (35mm) / Screw
• Protection Rating: IP2x
• Operating Temperature: -5 to 60 C
• Approvals: CSA, UL
• Weight: 0.45 kg
• Series: ABE7 / Telefast
• Compatibility: TWDDDO16TK, TWDDDO32TK

Designed for Twido programmable controller I/O extension with 16 source outputs and per-channel fuse protection.
