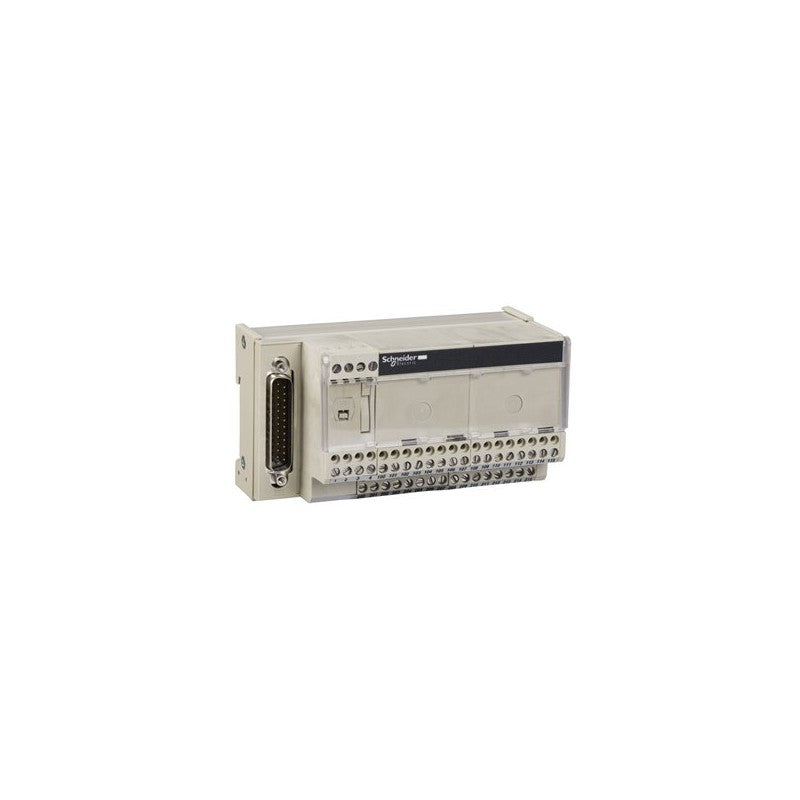

Schneider Electric ABE7CPA31 | Relay & Timer

ABE7CPA31 Schneider Electric - Connection Sub-Base for Analog Inputs. Connection sub-base from the Modicon ABE7 series, designed for distribution of 8 isolated analog input channels with SUB-D 25 connector for PLC connection.

• Brand: Schneider Electric
• Category: Analog I/O Module
• Product Type: Connection Sub-Base for Analog Channels
• Number of Channels: 8
• Function: Isolated Analog Input
• Control Circuit Voltage: 24V DC
• Connection to PLC: SUB-D 25
• Termination Style: Screw Terminal
• Rated Insulation Voltage: 2000V
• Mounting: DIN Rail (35mm) / Screw
• Protection Rating: IP20
• Operating Temperature: 0 to 60 C
• Approvals: CSA, DNV, GL, UL
• Weight: 0.41 kg
• Series: Modicon ABE7 / Telefast
• Standards: CSA C22.2, IEC 61131, UL 508

Provides pre-wired connectivity for 8 analog input channels between sensors and PLC analog input modules in industrial automation systems.
