Schneider Electric ABE7CPA01 | Relay & Timer

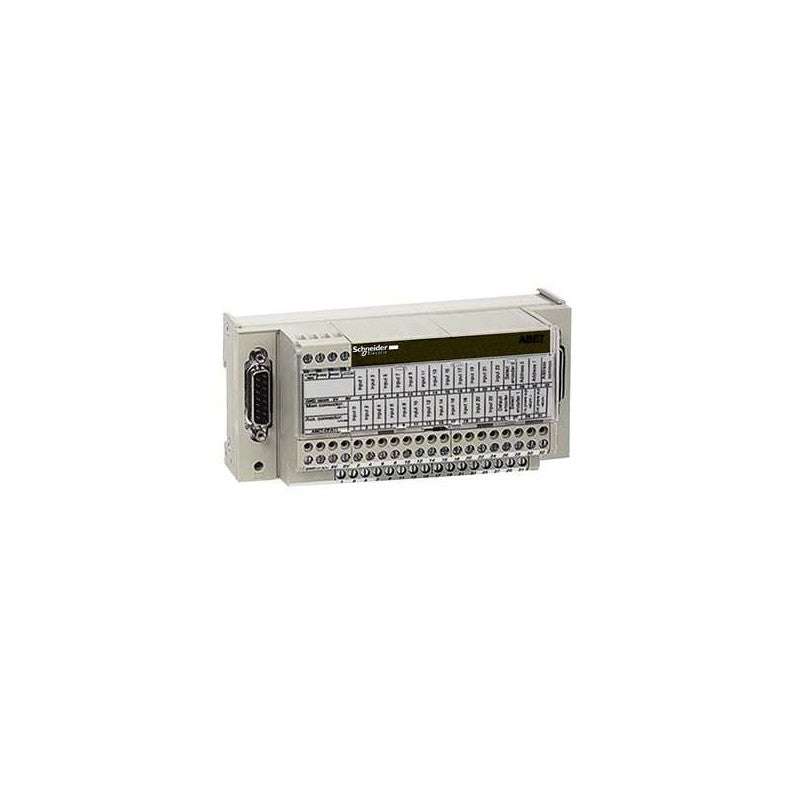

ABE7CPA01 Schneider Electric - ABE7 Connection Sub-base for Counter and Analog Channels. The Schneider Electric ABE7CPA01 is a connection sub-base from the Modicon ABE7 Telefast pre-wired system, designed for counter and analog channel connectivity. It supports counting and analog functions compatible with TSX Micro, and counting, axis control, and position control compatible with Premium PLCs. The sub-base features screw type terminals and a SUB-D 15 connector for reliable PLC connection.

• Brand: Schneider Electric
• Category: Connection Sub-base
• Product Type: Connection Sub-base
• Series: Modicon ABE7 Telefast
• Application: Counting and Analog
• Number of Channels: 2, 8, 1
• Control Circuit Voltage: 24V DC
• Connector Type: SUB-D 15
• Terminal Type: Screw type terminals
• Compatible Modules: TSX Micro TSXCTZ2A; Premium TSXCTY4A/TSXCTY2A/TSXCAY41/TSXCAY21
• Rated Insulation Voltage: 2000 V terminals/mounting rails
• Fixing Mode: DIN rail clips (35mm) or screws
• Weight: 0.3 kg
• Standards: DNV, CSA, UL, GL, EAC
• IP Rating: IP20

Industrial automation systems requiring counter and analog signal distribution, motion control and position feedback applications for Schneider TSX Micro and Premium PLCs.
