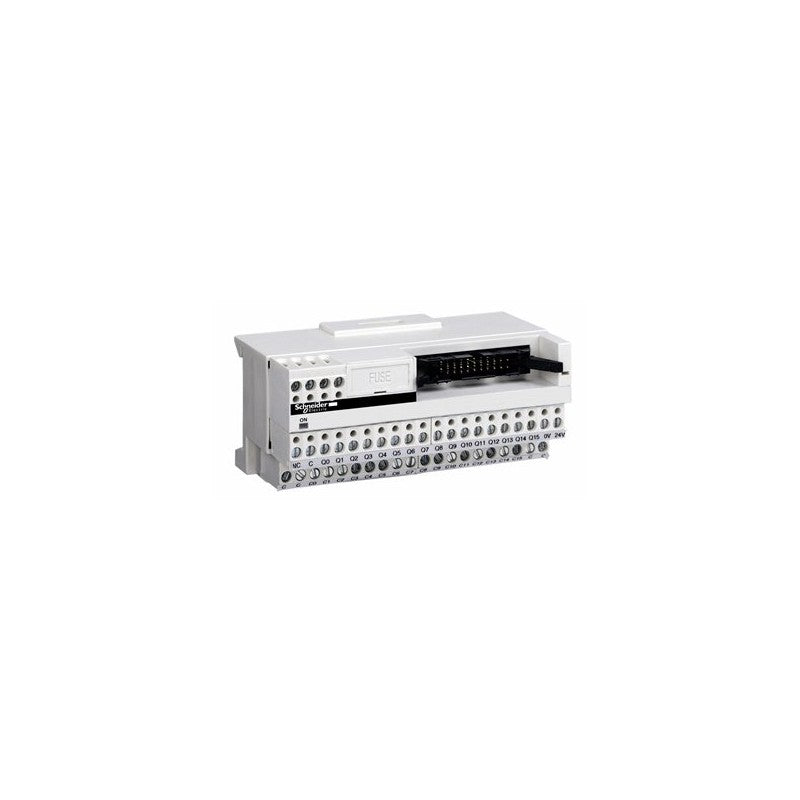

Schneider Electric ABE7B20MPN20 | Relay & Timer

ABE7B20MPN20 Schneider Electric - ABE7 Telefast Sub-base for Twido CPU - 12 Inputs / 8 Outputs. The Schneider Electric ABE7B20MPN20 is a Telefast 2 output module sub-base from the Modicon ABE7 series, designed for Twido CPU applications with 12 inputs and 8 outputs. It provides 24V DC discrete output with 16 channels, featuring HE-10 connector with 26 pins and internal fuse protection for reliable operation.

• Brand: Schneider Electric
• Category: Connection Sub-base
• Product Type: Telefast Sub-base
• Series: Modicon ABE7 Telefast
• Application: Twido CPU 12 Inputs / 8 Outputs
• Discrete Output Voltage: 24V DC
• Number of Channels: 16
• Polarity Distribution: 1 common / 8 channels (output), 1 common / 12 channels (input)
• Connector Type: HE-10
• Pin Number: 26 pins
• Short Circuit Protection: 2A internal fuse, 5x20mm, fast blow
• Supply Current: <= 2A
• Switched Current: 300 mA (output), 15 mA (input)
• Rated Insulation Voltage: 2000 V
• Fixing Mode: Screws or DIN rail clips (35mm)
• Status LED: 1 LED for power ON
• Compatible Products: TWDLMDA20DTK, TWDLMDA40DTK

Industrial automation systems using Schneider Twido PLC controllers, discrete I/O signal distribution for machine control and factory automation applications.
