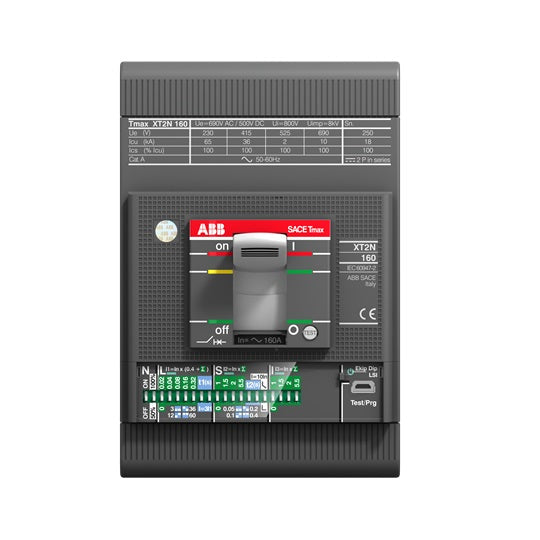

ABB XT2N 160A Ekip LS/I 3P MCCB | 1SDA067071R1

SKU: 1SDA067071R1
(0)
$920.74
In stock
Usually ships within 72 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
SACE Tmax XT

1SDA067071R1

3-Pole Moulded Case Circuit Breaker — 36 kA Breaking Capacity at 415V AC

160 A Rated 3P Configuration 36 kA @ 415V Ekip LS/I Release

Key Ratings at a Glance

Rated Current
160 A
Breaking Capacity
36 kA @ 415V
Poles
3P
Performance Level
N

Technical Specifications

Parameter Value
Product Type Moulded Case Circuit Breaker
Frame Size XT2N
Trip Unit Ekip LS/I
Rated Current (In) 160 A
Number of Poles 3
Rated Voltage (Ur) 690 V AC / 500 V DC
Rated Insulation Voltage (Ui) 800 V (XT1/XT2) / 1000 V (XT3)
Rated Impulse Withstand (Uimp) 8 kV
Ics @ 220V AC 72 kA
Ics @ 380-415V AC 36 kA
Ics @ 440V AC 18 kA
Ics @ 690V AC 5 kA
Frequency 50/60 Hz
Connection Front / Bolt
Dimensions (W×D×H) 76.2 × 82.5 × 130 mm
Weight 1.4 kg
Mounting DIN Rail / Panel
Degree of Protection IP20
Standards IEC/EN 60947-2

Applications & Features

Applications

  • Industrial power distribution boards and switchgear
  • Commercial building electrical distribution systems
  • Motor protection and control circuits
  • Generator set protection
  • UPS and battery backup systems
  • Infrastructure and utility installations

Features

  • Compact design: only 76.2 mm width for 3P
  • High breaking capacity: 36 kA at 415V AC
  • Thermo-magnetic (Ekip LS/I) trip unit for reliable overload and short-circuit protection
  • Visually clear rotary handle with ON/OFF indication
  • Lockable handle for safety (padlock accessory available)
  • Full selectivity coordination with upstream/downstream devices
  • Expandable with auxiliary contacts, shunt trips, and undervoltage releases

Compliance & Approvals

CE Marking Yes — Low Voltage Directive 2014/35/EU
RoHS Compliant — Directive 2011/65/EU
UL/cUL Listed (applicable standards)
IEC Standards IEC/EN 60947 series
Marine Approvals ABS, DNV, LR, BV, RINA (where applicable)
⚡ Authentic ABB Product — 100% genuine, sourced directly from authorized ABB distribution channels. Contact us for bulk pricing and technical support.
