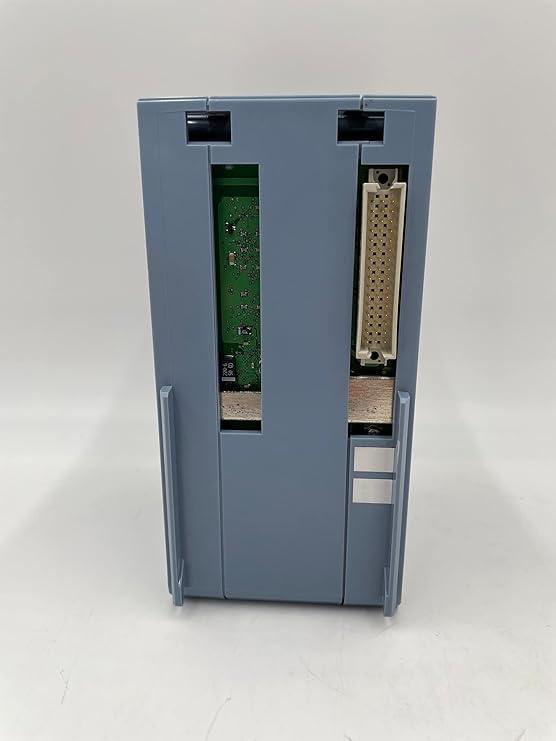

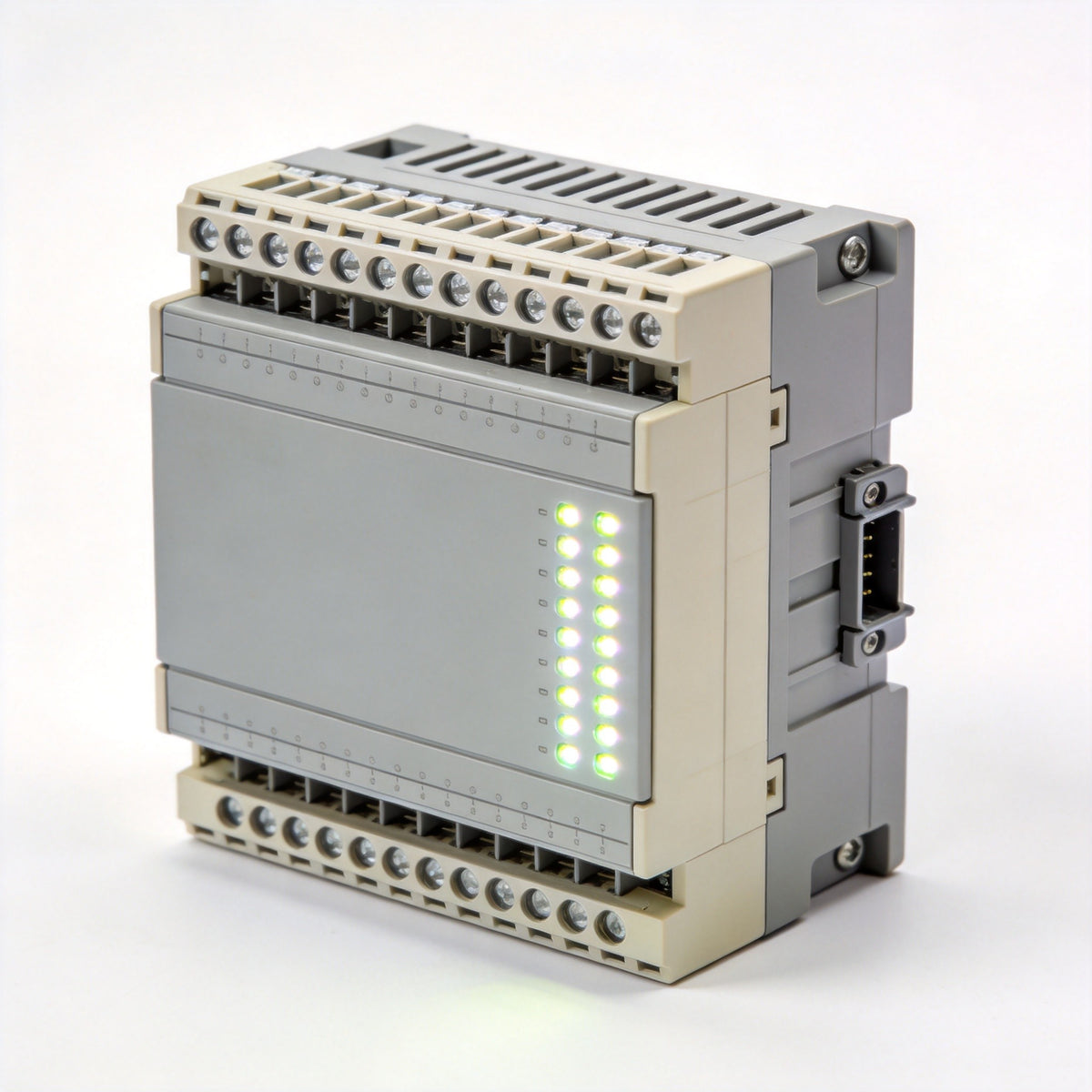

The TU509 is an S500 interface terminal unit for the AC500 PLC platform, designed for communication interface modules such as PROFIBUS modules. It provides a 24 V DC base with screw terminals, a D-sub 9 connector for the fieldbus network and 30 terminals for signals and process supply voltages.
Communication interface modules plug into the terminal unit and are secured with two mechanical locks; all connections are established through the terminal unit, so modules can be removed and replaced without disturbing field wiring. Process supply terminals UP/UP3 carry +24 V DC and ZP carries 0 V with a fixed assignment independent of the inserted module.
Typical applications include PROFIBUS and serial fieldbus communication stations in AC500/S500 automation systems, mounted on DIN rail or by two wall-mounting screws.
| Product Series | ABB AC500 / S500 terminal units |
| Model / Type Designation | TU509 |
| Product Type | Interface terminal unit for communication modules |
| Supply Voltage | 24 V DC |
| Terminals | Screw terminals; 30 terminals for signals and process supply |
| Fieldbus Connector | D-sub 9 (female) for PROFIBUS network |
| Process Supply Terminals | UP/UP3 = +24 V DC; ZP = 0 V (fixed assignment) |
| Compatible Modules | AC500/S500 communication interface modules (e.g. CI451-DP) |
| Module Replacement | Module removable without re-wiring terminal unit |
| Mounting | DIN rail or 2-screw wall mounting |
| Degree of Protection | IP20 |
| Dimensions (W x H x D) | 67.5 x 135 x 28 mm |
| Product Net Weight | 0.16 kg |
| Brand | ABB |
| Condition | New Surplus |
| Warranty | 12-month seller warranty |
