ABB

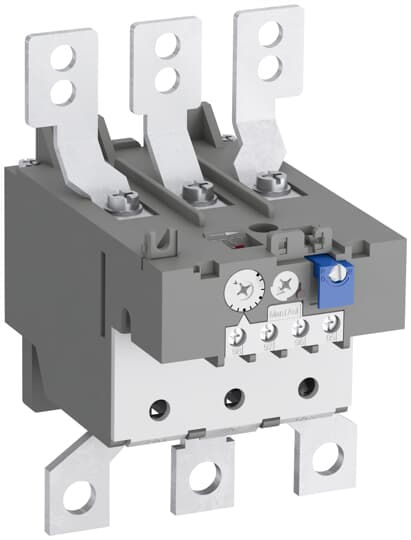

ABB 1SAZ421201R1006 TA200DU-80 Thermal Overload Relay

SKU: 1SAZ421201R1006
(0)
$107.39
In stock
Usually ships within 72 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
| TA200DU

1SAZ421201R1006 — TA200DU-80

Thermal Overload Relay

ABB TA200DU-80 thermal overload relay with 66.0...80.0 A range. Direct mounting for A145/A185 contactors, class 10A trip.

Key Ratings at a Glance

Setting Range
66.0...80.0 A
Rated Current
80.0 A
Rated Voltage
690 V AC
Trip Class
10A
Width
104 mm
Compatible With
A145...A185

Technical Specifications

Order Code 1SAZ421201R1006
Product Model TA200DU-80
Product Family TA200DU
Current Setting Range 66.0...80.0 A
Rated Operational Current 80.0 A
Rated Operational Voltage 690 V AC
Trip Class 10A
Number of Poles 3
Net Width 104 mm
Net Weight 1.1 kg
Auxiliary Contacts 1NO + 1NC
Suitable For A145...A185
Ambient Temperature -25 ... +55 °C
Degree of Protection IP20
Mounting DIN rail (EN 60715 TH35-15)
Standards IEC/EN 60947-4-1, IEC/EN 60947-2, IEC/EN 60947-1, UL 508, CSA 22.2 No. 14

Key Features

  • Class 10A adjustable thermal overload protection
  • Three-pole bimetallic tripping elements
  • Ambient temperature compensation (−25 °C to +55 °C)
  • Protection against phase loss / asymmetry
  • Convertible manual / automatic reset
  • Built-in auxiliary contacts: 1NO + 1NC
  • Test / trip button for functional verification

Applications

  • Motor overload protection with A-series contactors
  • Pump and fan motor protection
  • Compressor and conveyor drive protection
  • General-purpose industrial motor circuits

Compliance & Approvals

CE compliant · RoHS · IEC/EN 60947 · UL Listed (where applicable) · CSA Certified

ℹ
Note: 690 V AC rated. Direct mounting on A145/A185 contactors.
