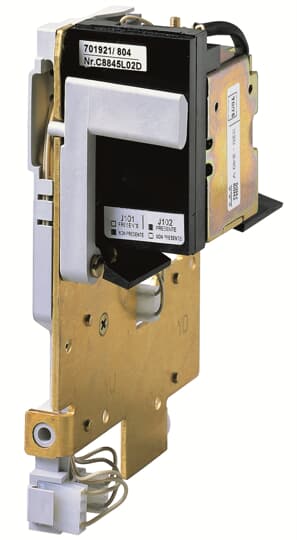

ABB SHUNT CLOSING RELEASE 110/120V E1/6-T8 Molded Case Circuit Breaker - Industrial Automation Part
ABB SHUNT CLOSING RELEASE 110/120V E1/6-T8 Molded Case Circuit Breaker - Industrial Automation Part

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB 1SDA038300R1 Tmax T4V Moulded Case Circuit Breaker (MCCB)

SKU: 1SDA038300R1
(0)
$164.95
In stock
Usually ships within 72 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
Tmax T4V · SACE Tmax

1SDA038300R1

1SDA038300R1 — Moulded Case Circuit Breaker (MCCB)

Rated Frame Current: 250ARated Current: Up to 250ARated Operational Voltage: 690V ACShort-Circuit Level: 70kA @ 415V ACInsulation Voltage: 1000V

Key Ratings at a Glance

Voltage
690V AC
Current
Up to 250A
Icu
70kA @ 415V AC
Poles
3P/4P
About this product: The ABB SACE Tmax T4V 250 is a high-performance moulded case circuit breaker with 250A frame current and V-level breaking capacity (up to 70kA at 415V). Designed for demanding industrial applications.

Technical Specifications

Parameter Value
Rated Frame Current (Iu) 250A
Rated Current (In) Up to 250A
Rated Operational Voltage 690V AC
Short-Circuit Level (V) 70kA @ 415V AC
Insulation Voltage 1000V
Number of Poles 3P/4P
Standards IEC 60947-2
Terminal Type Front/Rear

Applications & Features

Typical Applications

  • Main distribution boards
  • Industrial power systems
  • Motor protection
  • Generator circuits

Key Features

  • High breaking capacity
  • Versatile trip unit options
  • Comprehensive accessories
  • Compact design

Compliance & Approvals

Standards IEC 60947 / IEC 61009 (as applicable)
Certifications CE, CCC, RoHS, UL (as applicable)
RoHS Status Compliant with EU Directive 2011/65/EU
Manufacturer ABB Ltd.
Condition New & Original
Warranty 12 months manufacturer warranty

SHLY-PLC · Authorized ABB Industrial Products Supplier · All product names and trademarks are property of ABB Group.

Frequently Asked Questions

Q: What is the warranty for ABB 1SDA038300R1?

A: This moulded case circuit breaker (mccb) comes with manufacturer warranty. Contact us for specific warranty terms.

Q: How fast can you ship 1SDA038300R1?

A: Orders placed before 14:00 ship same day. Standard delivery: 5-8 business days worldwide. Express available.

Q: Is 1SDA038300R1 compatible with ABB systems?

A: Yes, 1SDA038300R1 is designed for full compatibility with ABB ecosystem. Contact our technical team for integration support.
