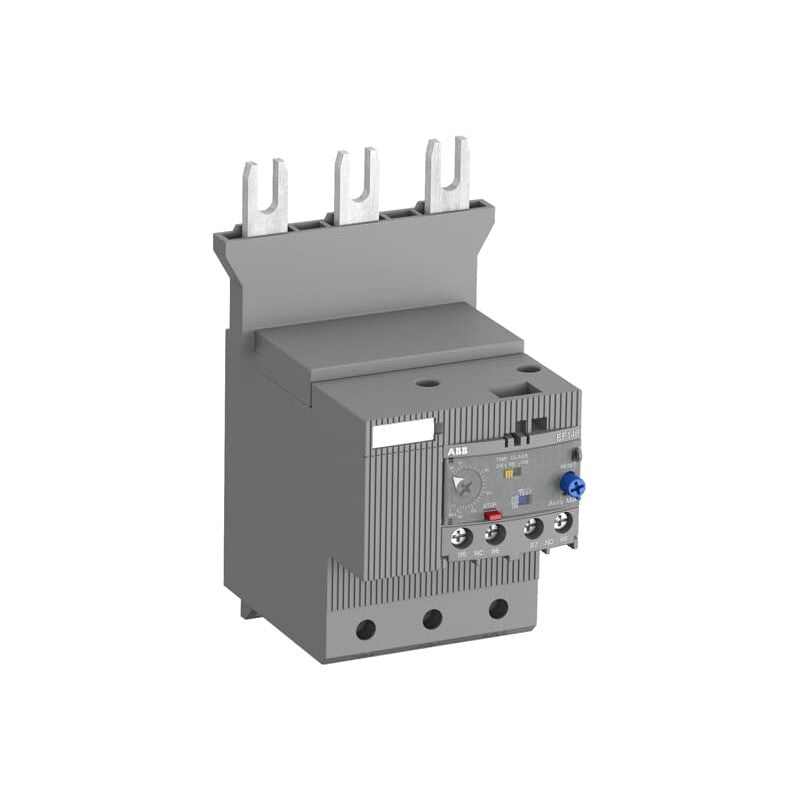

ABB EF146-150 Industrial Automation Component - Industrial Automation Part
ABB ABB 1SAX351001R1101 - view 2
ABB ABB 1SAX351001R1101 - view 3
ABB EF146-150 Industrial Automation Component - Industrial Automation Part
ABB ABB 1SAX351001R1101 - view 2
ABB ABB 1SAX351001R1101 - view 3

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB 1SAX351001R1101 E140DU-140 Electronic Overload Relay

SKU: 1SAX351001R1101
(0)
$667.01
In stock
Usually ships within 72 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
| E140DU

1SAX351001R1101 — E140DU-140

Electronic Overload Relay

ABB E140DU-140 electronic overload relay with 50...140 A range. Self-supplied, class 10E/20E/30E. Ui = 1000 V. For A95-A110/AF95-AF110 contactors.

Key Ratings at a Glance

Setting Range
50...140 A
Rated Current
140 A
Rated Power @400V
63 kW
Rated Voltage
690 V AC
Trip Class
10E/20E/30E
Width
80 mm
Compatible With
A95...A110 / AF95...AF110
Degree of Protection
IP20

Technical Specifications

Order Code 1SAX351001R1101
Product Model E140DU-140
Product Family E140DU
Current Setting Range 50...140 A
Rated Operational Current 140 A
Motor Power @400V AC-3 63 kW
Rated Operational Voltage 690 V AC
Trip Class 10E/20E/30E
Number of Poles 3
Net Width 80 mm
Net Weight 0.65 kg
Auxiliary Contacts 1NO + 1NC
Suitable For A95...A110 / AF95...AF110
Ambient Temperature -25 ... +70 °C
Degree of Protection IP20
Mounting DIN rail (EN 60715 TH35-15)
Standards IEC/EN 60947-4-1, UL 508, CSA 22.2 No. 14

Key Features

  • Class 10E / 20E / 30E selectable trip class
  • Self-supplied — no external power supply needed
  • Electronic current measurement with wide setting range
  • Temperature compensated up to +70 °C ambient
  • Phase loss and phase asymmetry protection
  • Sealable cover for tamper protection
  • Direct clip-on mounting on compatible contactors
  • Ui = 1000 V rated insulation

Applications

  • Precision electronic motor overload protection
  • Pump and compressor motor circuits
  • Critical industrial motor applications requiring adjustable trip class
  • Applications with varying ambient temperatures
  • Large motor circuits up to 63 kW

Compliance & Approvals

CE compliant · RoHS · IEC/EN 60947 · UL Listed (where applicable) · CSA Certified

Frequently Asked Questions

Q: What is the warranty for ABB 1SAX351001R1101?

A: This electronic overload relay comes with manufacturer warranty. Contact us for specific warranty terms.

Q: How fast can you ship 1SAX351001R1101?

A: Orders placed before 14:00 ship same day. Standard delivery: 5-8 business days worldwide. Express available.

Q: Is 1SAX351001R1101 compatible with ABB systems?

A: Yes, 1SAX351001R1101 is designed for full compatibility with ABB ecosystem. Contact our technical team for integration support.
