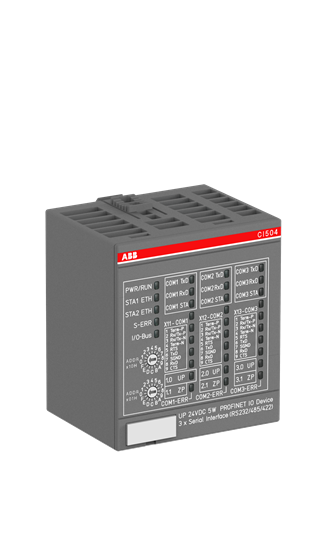

The CI504-PNIO is a communication interface module for the ABB AC500 PLC system. It connects the AC500 I/O system to a PROFINET IO real-time network as an IO device, while additionally providing three independent serial interfaces for linking serial equipment such as drives, instruments and barcode readers.
The module integrates a PROFINET IO RT interface through its Ethernet port, which can also be used as a switch port for line and ring (MRP) topologies. Alongside this it offers three serial channels individually configurable for RS-232, RS-422 or RS-485 with ASCII protocol support, giving a compact gateway between field serial devices and the PROFINET controller.
The module is powered from the 24 V DC system supply (typical 0.15 A) with a 10 A fuse protection rating, and is built in the standard AC500 S500 I/O form factor for DIN-rail mounting beside the processor and I/O modules. It is configured within ABB Automation Builder.
| Product Series | ABB AC500 communication modules |
| Model | CI504-PNIO |
| Order Code | 1SAP221300R0001 |
| Product Type | PROFINET IO communication interface module |
| Fieldbus | PROFINET IO RT (Ethernet) |
| Ethernet Function | Switch-capable port; line and MRP ring topology support |
| Serial Interfaces | 3 x serial, configurable RS-232 / RS-422 / RS-485, ASCII protocol |
| Supply Voltage | 24 V DC |
| Current Consumption | Approx. 0.15 A (10 A fuse rating) |
| Configuration | ABB Automation Builder |
| Mounting | DIN rail (AC500 S500 I/O system) |
| Degree of Protection | IP20 |
| Brand | ABB |
| Condition | New Surplus |
| Warranty | 12-month warranty (provided by us) |
