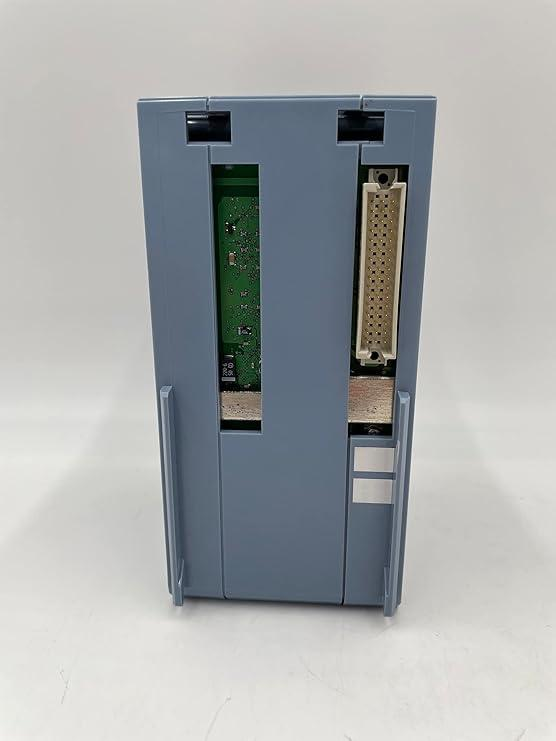

The CD522 is an encoder, counter and pulse-width-modulation function module for the ABB AC500 / S500 I/O system. It provides two independent counting channels supporting up to twelve configurable operating modes, including incremental position encoder inputs and frequency measurement up to 300 kHz, enabling high-speed acquisition from motion and positioning applications.
Two independent PWM / pulse outputs with push-pull drivers support pulse-train outputs for stepper and servo drives, while two dedicated 5 V power supplies feed connected encoders directly. The module supports 5 V RS-422 differential incremental encoders, HTL incremental encoders and SSI absolute encoders, with dedicated touch/set/reset inputs for capture functions.
Additional channels include two 24 V DC digital inputs and eight configurable 24 V DC digital inputs/outputs available for general use when not dedicated to counting functions. The module is galvanically isolated as a unit, mounts on a terminal unit on 35 mm DIN rail with IP20 protection, and an XC version is available for extreme ambient conditions.
| Brand / Series | ABB S500 function modules |
| Product Type | Encoder / counter / PWM function module |
| Catalog Designation | CD522 |
| Counter Channels | 2 independent, up to 12 configurable modes |
| Maximum Counter / Frequency Input | Up to 300 kHz |
| Encoder Support | RS-422 differential incremental (5 V), HTL incremental, SSI absolute |
| Encoder Supplies | 2 integrated 5 V encoder power supplies |
| PWM / Pulse Outputs | 2 independent, push-pull driver |
| Digital Inputs | 2 dedicated 24 V DC + 8 configurable DI/DO 24 V DC |
| Special Functions | Touch/capture, set, reset reference inputs |
| Isolation | Module-wise galvanic isolation |
| Use With | AC500 processor modules / communication interface modules |
| Degree of Protection | IP20 (installed) |
| Mounting | 35 mm DIN rail on terminal unit |
| Brand | ABB |
| Condition | New Surplus |
| Warranty | 12-month warranty (provided by us) |
