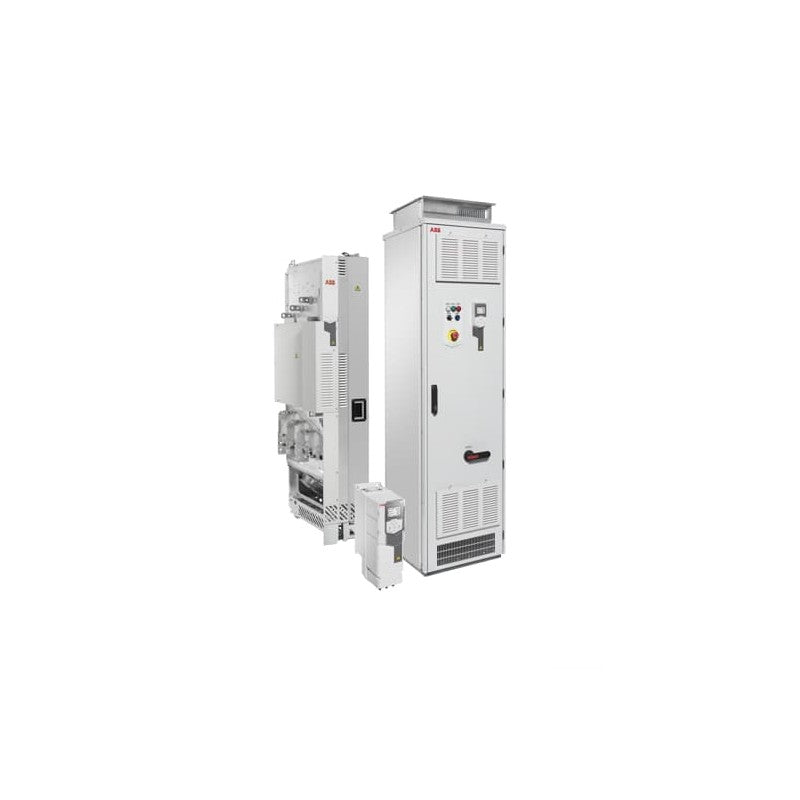

ABB ACS580 all-compatible variable frequency drive offering energy-efficient motor control with built-in features for pumps, fans, conveyors, compressors and other variable torque applications.
| Manufacturer | ABB |
|---|---|
| Series | ACS580 |
| Model | ACS580-01-025A-4 |
| Product Type | Variable Frequency Drive (VFD) |
| Input Voltage | 380-480 V AC, 3-phase |
| Input Phases | 3 |
| Input Frequency | 48-63 Hz |
| Output Voltage | 0 to input voltage, 3-phase |
| Output Frequency | 0-500 Hz |
| Rated Output Current (Normal Use) | 25.0 A |
| Rated Motor Power (Normal Use) | 11.0 kW (15 HP) |
| Light-Duty Output Current | 24.0 A (15 HP) |
| Heavy-Duty Output Current | 17.0 A (10 HP) |
| Maximum Output Current | 37.5 A |
| Frame Size | R2 |
| Power Factor | 0.98 |
| Control Method | Scalar and Vector control |
| Supported Motors | Induction (IM), Permanent Magnet (PM), Synchronous Reluctance (SynRM) |
| Enclosure Rating | IP21 / IP55 (UL Type 1 / Type 12) |
| Switching Frequency | Up to 16 kHz (default 4 kHz) |
| Digital Inputs | 6 (12-24 V DC/AC, PNP/NPN) |
| Analog Inputs | 2 (programmable voltage/current) |
| Analog Outputs | 2 (programmable voltage/current) |
| Relay Outputs | 3 (250 V AC / 30 V DC, 2 A continuous) |
| Auxiliary Voltage | 24 V DC, max 250 mA |
| Communication | Built-in Modbus RTU; optional Modbus TCP, PROFINET IO, EtherNet/IP, EtherCAT, POWERLINK |
| Safe Torque Off (STO) | SIL 3 / PL e per EN 61800-5-2 |
| Brake Chopper | Built-in (frames R1-R3) |
| Harmonic Mitigation | Built-in DC swinging choke, EN 61000-3-12 compliant |
| EMC Filter | C2 (1st environment, restricted distribution) |
| Operating Temperature | -15 to +50 °C |
| Storage Temperature | -40 to +70 °C |
| Humidity | 5-95% RH, non-condensing |
| Altitude | Up to 4000 m (derating above 1000 m) |
| Efficiency | Approx. 97% at rated power |
| Certifications | CE, UL, cUL, EAC, RCM, TUV Nord |
| Protective Functions | Overvoltage, undervoltage, overcurrent, ground fault, motor overtemperature, motor overload, phase loss, stall, underload supervision |
