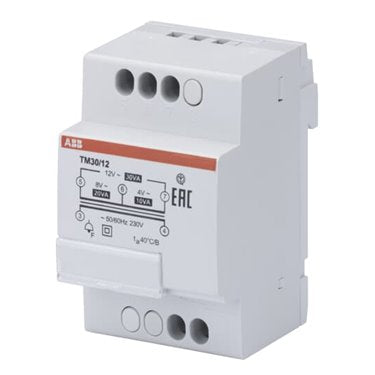

The ABB TM30/12 is a DIN-rail mounted fail-safe bell transformer with safety extra-low voltage (SELV) secondary, providing 30 VA at 4/8/12 V AC for discontinuous supply loads such as doorbells and chimes.
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 2CSM228755R0802 |
| Model | TM30/12 |
| Product Type | Fail-Safe Bell Transformer |
| Transformer Type | Fail-Safe Bell (SELV) |
| Primary Voltage | 230 V AC |
| Secondary Voltage | 4/8/12 V AC |
| Rated Power | 30 VA |
| Power Loss | 4 W |
| Maximum Output Current | 2.5 A |
| Rated Frequency | 50/60 Hz |
| Insulation Class | B |
| Number of Outputs | 5 |
| Termination Type | Screw |
| Connection Capacity | 2.5 mm² |
| Wire Stripping Length | 9 mm |
| Tightening Torque | 0.5 Nm |
| Protection Degree | IP20 |
| Operating Temperature | +10 °C to +40 °C |
| Width | 52.5 mm |
| Dimensions (H x D) | 85 x 65 mm |
| Net Weight | 0.45 kg |
| Mounting | DIN Rail |
| Standards | IEC/EN 61558-2-8 |
| Country of Origin | Italy |
| RoHS Compliant | Yes |
