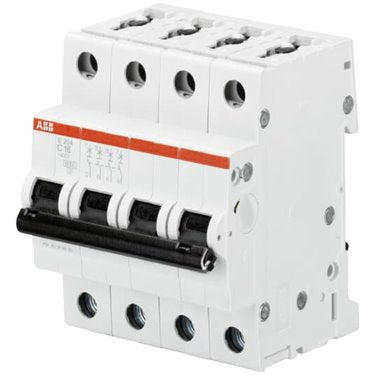

ABB S204-C50 System pro M compact S200 series miniature circuit breaker with 4 pole(s), C-curve (5-10x In tripping) for general purpose, 50 A rated current, and 6 kA breaking capacity, providing reliable overload and short circuit protection for industrial and commercial applications.
| Manufacturer | ABB |
| Model | S204-C50 |
| Order Code | 2CDS254001R0504 |
| Product Type | Miniature Circuit Breaker (MCB) |
| Series | System pro M compact S200 |
| Number of Poles | 4 |
| Tripping Characteristic | C |
| Rated Current (In) | 50 A |
| Rated Operational Voltage (Ue) | 400 V AC (IEC 60898-1), 440 V AC (IEC 60947-2) |
| Rated Insulation Voltage (Ui) | 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (6.2 kV at sea level, 5 kV at 2000m) |
| Rated Short-Circuit Capacity (Icn) | 6 kA at 400 V AC |
| Rated Ultimate Breaking Capacity (Icu) | 20 kA, 10 kA at 400 V AC |
| Rated Service Breaking Capacity (Ics) | 15 kA, 7.5 kA at 400 V AC |
| Rated Frequency | 50/60 Hz |
| Power Loss | 13 W total (3.25 W per pole) |
| Energy Limiting Class | 3 |
| Tripping Mechanism | Thermal (overload) + Electromagnetic (short circuit) |
| Electrical Endurance | 10,000 cycles |
| Mechanical Endurance | 20,000 cycles |
| Mounting Type | DIN Rail (TH35-15 / TH35-7.5) |
| Terminal Type | Screw Terminals (Cylinder-lift) |
| Tightening Torque | 2.8 N·m |
| Connecting Capacity | Rigid 0.75-35 mm², Flexible 0.75-25 mm² |
| Degree of Protection | IP20 (IP40 with enclosure cover) |
| Dimensions (W×H×D) | 70.0 × 88 mm × 69 mm |
| Weight | 0.500 kg |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CE |
| Ambient Temperature | Operation: -25 to +55 °C, Storage: -40 to +70 °C |
