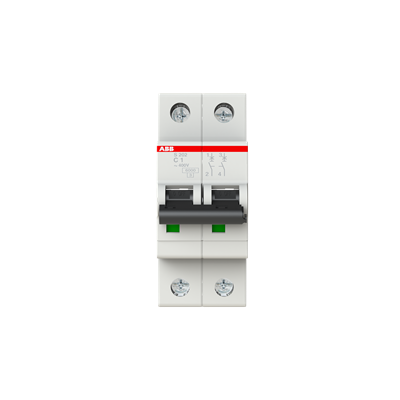

The S202-C1 (2CDS252001R0014) is a two-pole miniature circuit breaker from the ABB System pro M compact S200 series, with a C trip characteristic and a 1 A rated current. It provides overcurrent and short-circuit protection for cables and appliances in residential and commercial installations, with a 6 kA short-circuit breaking capacity per IEC/EN 60898-1.
The S200 MCB family is ABB System pro M compact and is DIN-rail mountable. The S202-C1 breaks 6 kA at 230/400 V and is IEC 60898-1 and 60947-2 certified for low-voltage circuit protection. Rated impulse withstand voltage (Uimp) is 6 kV and the frame features ABB standard busbar-ready terminals.
| Product ID | 2CDS252001R0014 |
|---|---|
| Type Designation | S202-C1 |
| Series | System pro M compact S200 |
| Device Type | Miniature circuit breaker (MCB) |
| Rated Current (In) | 1 A |
| Trip Curve | C |
| Rated Voltage (Un) | 400 V AC |
| Number of Poles | 2P |
| Short-circuit Breaking Capacity (Icn) | 6 kA (IEC/EN 60898-1, 230/400 V) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2 |
| Frequency | 50/60 Hz |
| Mounting | DIN rail (35 mm) |
| Degree of Protection | IP40 (housing) / IP20 (terminals) |
| Ambient Temperature | -25 °C ... +55 °C |
| Dimensions | 2 modules (W×D×H 35×70×88 mm) |
| Weight | 0.28 kg |
This unit is shipped as New Surplus — unused, original-condition industrial automation equipment. It is backed by a 12-month limited warranty provided by our company for your risk-free purchase. Please verify part number and technical compatibility before ordering; our technical support team is available to confirm selection. Worldwide export packaging is available and orders are dispatched promptly with reliable logistics and tracking.
Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Economy shipping takes 9–14 business days, while express delivery arrives in 5–8 business days, both subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.
Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
