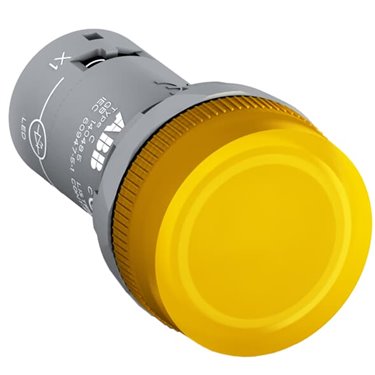

The ABB CL2-502Y is a compact yellow LED pilot light designed for 24V AC/DC operation. Part of ABB's CL2 next-generation compact range, it features an integrated LED light source with a long service life of at least 50,000 hours and high IP69K protection for reliable status indication in harsh industrial environments.
| Manufacturer | ABB |
| Model Number | CL2-502Y |
| Series | CL2 |
| Product Type | Pilot Light |
| Lens Color | Yellow |
| Lamp Type | Integrated LED |
| Rated Voltage | 24V AC/DC |
| Rated Current | 16 mA |
| Anti-inductive Voltage (Vpeak) | 6V |
| Wavelength | 590 nm |
| Illumination | 55 lx |
| Rated Insulation Voltage (Ui) | 300V |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Rated Frequency | DC |
| Service Life | ≥50,000 hours |
| Front Protection Degree | IP66, IP67, IP69K |
| Terminal Protection Degree | IP20 |
| NEMA Rating | 1, 3R, 4, 4X, 12, 13 |
| Pollution Degree | 3 |
| Connection Type | Screw Clamp |
| Tightening Torque | 0.9 N·m (M3.5 cable clamp); 2.0-2.3 N·m (locking nut) |
| Wire Size | 0.5 - 2.5 mm² |
| Panel Cutout Diameter | 22.3mm |
| Mounting Depth | 39 mm |
| Panel Thickness | 1 - 6 mm |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| UV Stabilization | Yes |
| Material Flammability | V2 (halogen and phosphorus free) |
| Voltage Fluctuation Range | -30% to +10% |
| Weight | 0.0185 kg |
| Certifications | CE, UL/cULus, CCC, UKCA |
