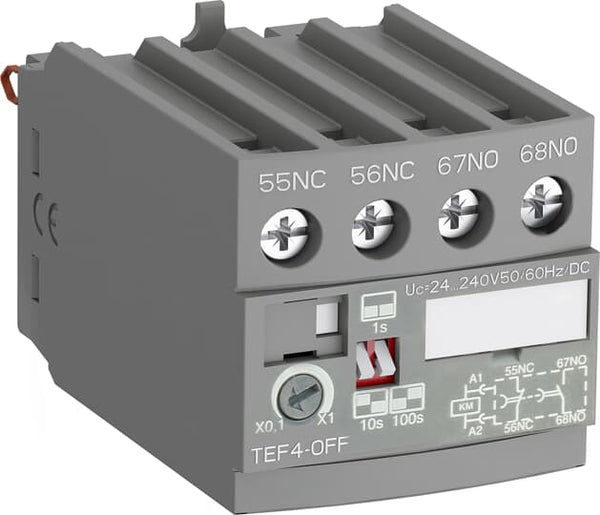

The ABB TEF4-OFF is a frontal electronic OFF-delay timer designed for direct mounting onto AF contactors and NF contactor relays. It provides three selectable time ranges from 0.1 to 100 seconds, with 1 NO and 1 NC auxiliary contacts. The timer plugs directly into the A1-A2 coil terminals and accepts a wide control voltage range of 24–240 V AC/DC. An integrated varistor provides surge protection, and a mechanical state indicator offers visual status confirmation.
| Product Type | Frontal Electronic OFF-Delay Timer |
|---|---|
| Compatible Contactors | AF contactors, NF contactor relays |
| Function | OFF-delay, 3 selectable time ranges |
| Time Range | 0.1–100s (3 ranges) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Control/Supply Voltage | 24–240 V AC/DC |
| Supply Connection | Direct plug-in to A1-A2 coil terminals |
| Conventional Thermal Current (Ith) | 5 A at 40°C |
| AC-15 Rated Current (Ie) | 3 A @ 24–127 V; 1.5 A @ 220–240 V |
| DC-13 Rated Current (Ie) | 1 A @ 24 V |
| Rated Insulation Voltage (Ui) | 400 V (IEC) / 300 V (UL/CSA) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Control Circuit Voltage (Uc) | 690 V |
| Surge Protection | Integrated varistor |
| Mounting | Front-mounted |
| Terminal Type | Screw terminals |
| Degree of Protection | IP20 |
| Mechanical State Indicator | Yes |
| Max Mechanical Switching Frequency | 3600 cycles/h |
| Max Electrical Switching Frequency | 1800 cycles/h |
| Dimensions (L×W×D) | 67.7 × 43 × 41.6 mm |
| Weight | 0.065 kg |
| Ambient Operating Temperature | -25°C to +70°C |
| Vibration Resistance | 5–300 Hz, 3 g closed / 2 g open |
| Max Operating Altitude | 2000 m |
| RoHS Compliance | Yes |
