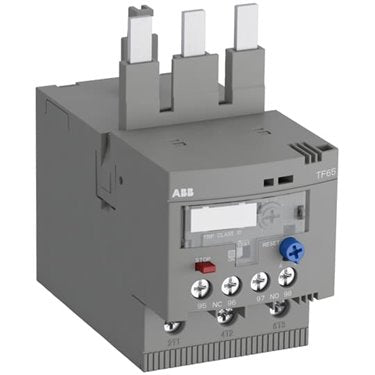

The TF65-33 is an economic electromechanical thermal overload relay from the TF65 series for main circuit motor protection. It provides reliable protection against overload and phase failure with trip class 10, temperature compensation, and selectable auto/manual reset.
| Parameter | Value |
|---|---|
| Product Type | Thermal Overload Relay |
| Model | TF65-33 |
| Series | TF65 |
| Setting Range | 25 ... 33 A |
| Rated Operational Voltage (Main) | 690 V AC / 440 V DC |
| Rated Operational Voltage (Aux) | 600 V AC/DC |
| Rated Operational Current (Ie) | 33 A |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | Main 8 kV, Aux 6 kV |
| Number of Poles | 3 (3P) |
| Number of Protected Poles | 3 |
| Auxiliary Contacts | 1 NC + 1 NO |
| Conventional Thermal Current (Ith) | NC 6 A, NO 4 A |
| Reset Method | Automatic or Manual |
| Trip Class | 10 |
| Rated Frequency | 50/60 Hz |
| Degree of Protection | Housing IP20, Terminals IP10 |
| Pollution Degree | 3 |
| Operating Temperature | -40 ... +70 °C |
| Storage Temperature | -50 ... +80 °C |
| Temperature Compensation | Yes |
| Maximum Operating Altitude | 2000 m |
| Resistance to Shock | 25g / 11 ms |
| Resistance to Vibration | 5g / 3 ... 150 Hz |
| Tightening Torque (Main) | 4.0 ... 4.5 N·m |
| Tightening Torque (Aux) | 1 ... 1.2 N·m |
| Mounting Position | 1 ... 6 |
| Suitable Contactors | AF40, AF52, AF65 |
| Dimensions (W×H×D) | 54.9 × 101.4 × 106.9 mm |
| Net Weight | 0.372 kg |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947 |
| RoHS Status | Compliant (EU 2011/65/EU) |
