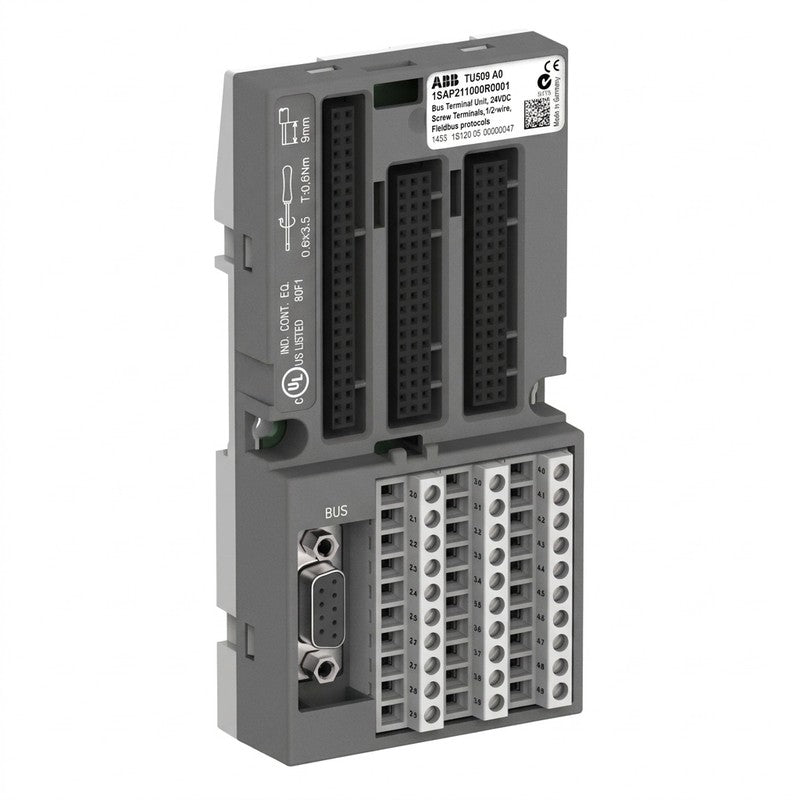

ABB 1SAP211000R0001 PLC Module
ABB 1SAP211000R0001 PLC Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ABB

ABB 1SAP211000R0001 Terminal Unit

SKU: 1SAP211000R0001
(0)
$224.77
In stock (66 units)
Free standard shipping on orders over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

ABB 1SAP211000R0001 TU509 Serial Bus Terminal Unit for S500 I/O, 24VDC

The ABB 1SAP211000R0001 (TU509) is a bus terminal unit for the ABB S500 I/O system, used with serial communication interface modules. It provides 24 V DC power supply wiring and a 9-pin D-Sub connector for serial communication, with screw terminals for secure field wiring. Technical data sourced from the official ABB product catalog. Supplied by SHLY-PLC, an independent industrial automation independent supplier; each unit undergoes visual inspection and functional testing before shipment. Contact our team for compatibility verification.

Features

  • Order Code: 1SAP211000R0001
  • Product Type: ABB TU509, S500 Series Bus Terminal Unit (Interface Terminal)
  • Primary Function: Wiring and supply terminal for S500 serial communication modules
  • Supply Voltage: 24 V DC
  • Serial Connection: 9-pin D-Sub connector
  • Field Wiring: Screw terminals for secure connection
  • Protocol Support: Serial communication protocols (RS232/RS485 etc. per paired module)
  • Degree of Protection: IP20
  • Mounting: DIN rail mount, compact for control cabinets
  • Country of Origin: Sweden
  • Lifecycle: Active production
  • Typical Use: ABB S500 distributed I/O serial communication wiring, retrofit and spare replacement

Specifications

Official ABB Catalog & Datasheet Parameters

Technical Specifications
Product ID 1SAP211000R0001
Type Designation TU509
Product System ABB S500 I/O
Supply Voltage 24 V DC
Serial Connector 9-pin D-Sub connector
Field Connection Screw terminals
Degree of Protection IP20
Dimensions (W × H × D) 67.5 × 135 × 28 mm
Weight 0.216 kg
Country of Origin Sweden
Agency Certifications
Certifications CE, cULus, RoHS (ABB standard industrial compliance)

Compatibility & Cross-References

The TU509 belongs to the ABB S500 I/O system and is used as the wiring/bus terminal unit together with S500 serial communication interface modules. It provides 24 V DC supply wiring and the 9-pin D-Sub serial connection for the paired communication module, with screw terminals for field wiring. This listing is provided by an independent industrial automation independent supplier; brand names and part numbers are used for product identification only.

Applications

  • ABB S500 distributed I/O serial communication wiring in control cabinets
  • Interface between S500 serial modules and field serial devices (RS232/RS485)
  • Process automation, water treatment, machine and panel building
  • Spare replacement for existing S500 terminal unit installations

Warranty

  • Availability: ABB TU509 active production, new units available; contact us for real-time stock status.
  • Inspection & testing: contact us for product condition and any available inspection or test records before ordering.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard delivery to the United States and Canada is about 5-8 business days, express shipping available, orders of $500 or more qualify for free standard shipping.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ABB part 1SAP211000R0001 is supplied by SHLY-PLC, an independent industrial automation independent supplier. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is ABB 1SAP211000R0001?

A: ABB TU509 bus terminal unit for the S500 I/O system, providing 24 V DC supply wiring and a 9-pin D-Sub serial connector with screw terminals for serial communication modules.

Q: What is the supply voltage of this terminal unit?

A: 24 V DC.

Q: How is the serial connection made?

A: Via a 9-pin D-Sub connector; field wiring is secured with screw terminals.

Q: Which ABB system is it used with?

A: It is part of the ABB S500 I/O system, paired with serial communication interface modules.
