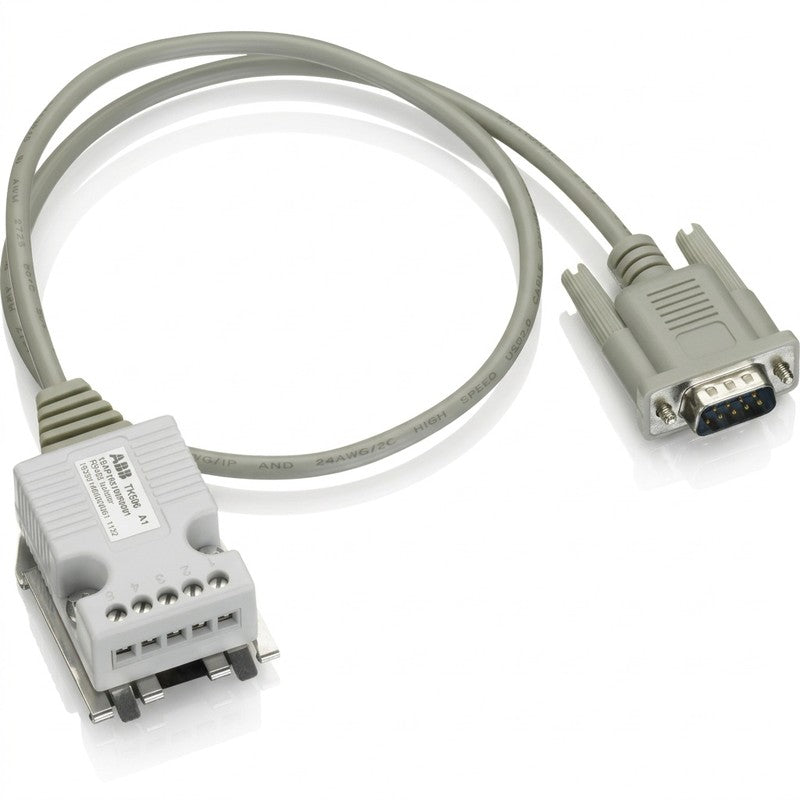

ABB 1SAP186100R0001 TK506 RS485 Isolator (D-Sub / 5-pole)

SKU: 1SAP186100R0001
(0)
$298.58
In stock (79 units)
Free standard shipping on orders over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

ABB 1SAP186100R0001 TK506 RS-485 Isolator for COM1, AC500-eCo, D-Sub 9 / 5-Pole Terminal

The ABB 1SAP186100R0001 is the TK506 RS-485 isolator, an accessory for ABB AC500-eCo CPUs. It connects to the serial CPU interface COM1 and extends the communication distance of the RS-485 bus, providing electrical isolation between the CPU and the serial fieldbus. It offers a 9-pin D-Sub connector on one side and a 5-pole terminal on the other, enabling tool-free wiring. Technical data sourced from official ABB AC500-eCo documentation. Supplied by SHLY-PLC, an independent industrial automation independent supplier; each unit is 12-month seller warranty provided by SHLY-PLC and functionally checked before shipment.

Key Features

  • Order Code: 1SAP186100R0001
  • Model: TK506 RS-485 Isolator
  • Function: Electrical isolation + distance extension of AC500-eCo serial COM1
  • Connectors: 9-pin D-Sub + 5-pole terminal
  • Interface: RS-485, for COM1
  • Applicable CPUs: AC500-eCo
  • Origin: Sweden
  • Lifecycle: Active

Technical Specifications

Official ABB Product Data (TK506 / 1SAP186100R0001)

Technical Specifications
Order Code 1SAP186100R0001
Model TK506 RS-485 Isolator
Product Type Serial isolator / line accessory
Purpose Extends communication distance of AC500-eCo serial interface COM1; provides isolation
Interface RS-485 (serial COM1)
Connector 1 9-pin D-Sub (Sub-D 9 poles)
Connector 2 5-pole terminal (screw / spring wiring)
Applicable CPUs ABB AC500-eCo (PM50xx-eCo)
Net Weight 0.08 kg
Gross Weight 0.095 kg
EAN 4016779877367
Country of Origin Sweden
Reference Documents
Product Data TK506 (ABB) — AC500-eCo Accessories
Model note: TK506 is an RS-485 line isolator (not a converter). It provides galvanic isolation and extends the serial communication distance of the AC500-eCo COM1 interface. D-Sub 9 poles connect to the CPU COM1; the 5-pole terminal connects to the RS-485 bus wiring.

Compatibility & Cross-References

Works with ABB AC500-eCo CPUs (PM50xx-eCo series) serial COM1. This listing is provided by an independent industrial automation independent supplier; brand names and part numbers are used for product identification only.

Applications

  • Galvanic isolation and distance extension of AC500-eCo serial communication
  • RS-485 fieldbus wiring to drives, HMI and remote devices
  • Replacement / spare isolator for AC500-eCo control systems

Warranty & Shipping

  • Availability: Active model; contact us for real-time stock status.
  • Inspection & testing: contact us for product condition and any available inspection or test records before ordering.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard delivery to the United States and Canada about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ABB part 1SAP186100R0001 (TK506) is supplied by SHLY-PLC, an independent industrial automation independent supplier. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is 1SAP186100R0001?

A: ABB TK506 RS-485 isolator for the AC500-eCo serial COM1 interface, D-Sub 9 + 5-pole terminal.

Q: What does the TK506 do?

A: It provides galvanic isolation and extends the serial communication distance of the AC500-eCo COM1 RS-485 interface.

Q: Is TK506 a converter or a power supply?

A: Neither — it is an RS-485 line isolator accessory that isolates and extends the COM1 serial line.
