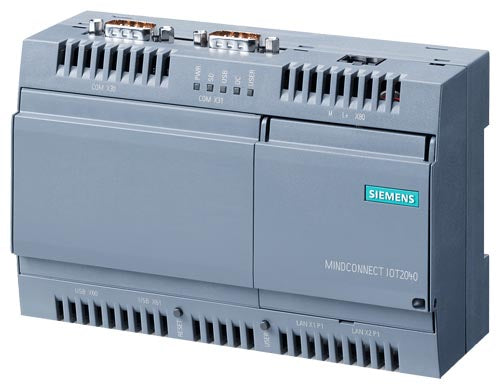

*** spare part *** MindConnect IoT2040 is a device for data acquisition via different protocols and allows the transfer of data to Insights Hub. The device supports the transmission of encrypted data over a secured internet connection to enable cloud-based applications and services. MindConnect IoT2040 can only be industrial in conjunction with Insights Hub in accordance with the special conditions contained in the product data sheet.
Product Type: Industrial Automation Component
General
| Article number |
9AC2112-0AA00-1YA2 |
Product function
| ● Proxy functionality |
Yes |
Installation type/mounting
| Mounting |
DIN rail, wall mounting, portrait mounting |
| Design |
IoT Gateway, built-in unit |
Supply voltage
| Type of supply voltage |
24 V DC |
Mains buffering
| ● Mains/voltage failure stored energy time |
5 ms |
Processor
| Processor type |
Intel Quark X1020 |
Drives
| Hard disk |
1x microSD 8 GB |
Storage
| Type of memory |
DDR3-SDRAM |
● Industrial Ethernet interface
Protocols
| S7 protocol |
Yes |
| OPC UA |
Yes |
Protocols (Ethernet)
Monitoring functions
Standards, approvals, certificates
| CE mark |
Yes |
| UL approval |
Yes |
| cULus |
Yes |
| KC approval |
Yes |
Vibrations
| ● Vibration resistance during operation acc. to IEC 60068-2-6 |
Tested according to IEC 60068-2-6: 5 Hz to 9 Hz: 3.5 mm; 9 Hz to 200 Hz: 9.8 m/s² |
Dimensions
| Width |
144 mm |
| Height |
90 mm |
| Depth |
53 mm |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
