Category: Motion control > ACOPOSmulti > Expansion modules > Cold plate or feed-through mounting

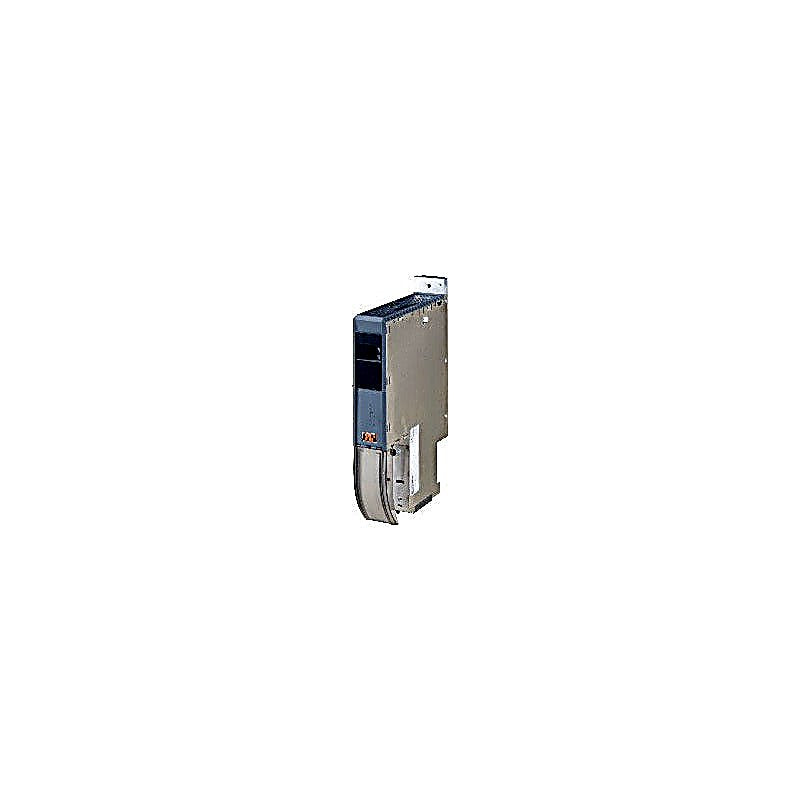

For distributing the DC bus power supply and 24 VDC auxiliary supply to multiple mounting plates For setting up decentralized units in the ACOPOSmulti drive system Output for overload protection ACOPOSmulti expansion module 40 A, AS, cold plate or pass-through mounting.
Technical Specifications
General information
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = Not applicable
- UL = cULus E225616 Power conversion equipment
- KC = Yes
- Cooling and mounting type = Cold plate or pass-through mounting
DC bus connection
- Voltage
- Nominal = 750 VDC
- Continuous power depending on fuse
- 10 A = 6 kW
- 20 A = 12 kW
- 50 A = 30 kW
- Continuous current depending on fuse
- 10 A = 8 A eff
- 20 A = 16 A eff
- 50 A = 40 A eff
- Reduction of continuous power depending on installation elevation
- Starting at 500 m above sea level = 10% per 1000 m
- Peak current depending on fuse
- 10 A = 20 A
- 20 A = 40 A
- 50 A = 100 A
- Reduction of continuous power at ambient temperatures starting at 40°C = 1.25% per °Kelvin
- Reduction of continuous power depending on cooling method = No reduction
- Power dissipation with continuous power = 200 W
- Variant = ACOPOSmulti backplane
24 VDC power supply
- Continuous power depending on fuse
- 12 A = 240 W
- 20 A = 400 W
- 30 A = 600 W
- Input voltage = 25 VDC ±1.6%
- Max. power consumption = 5 W
- Reduction of continuous power at ambient temperatures starting at 40°C = 1.25% per °Kelvin
- Variant = ACOPOSmulti backplane
DC bus cable outlet
- Fuse protection
- Type = 2x melting fuse ø 14 x 51 mm
- Tripping characteristic = Ultra fast-acting
- Rated current = 10 / 20 / 25 / 50 A
- Protective measures
- Fuse-dependent overload protection
- 10 A = No (overload indicated via LED, dry alarm contacts present)
- 20 A = No (overload indicated via LED, dry alarm contacts present)
- 50 A = No (overload indicated via LED, dry alarm contacts present)
- Short-circuit and ground fault protection = Yes
- Variant
- DC+, DC-, PE = Connector
- Shield connection = Yes
- Terminal connection cross section
- Flexible and fine-stranded wires
- With wire end sleeve = 0.5 to 16 mm²
- Approbation data
- UL/C-UL-US = 20 to 6 AWG
- CSA = 20 to 6 AWG
- Quantity = 2
- Max. line length between two expansion modules = 5 m
- Terminal cable cross section dimension of shield connection = 12 to 22 mm
24 VDC auxiliary supply cable outlet
- Output voltage
- DC bus voltage (U DC ): 260 to 315 VDC = 25 VDC * (DC bus voltage / 315)
- DC bus voltage (U DC ): 315 to 800 VDC = 24 VDC ±6%
- Fuse protection
- Type = Melting fuse ø 10 x 38 mm
- Tripping characteristic = Fast-acting
- Rated current = 12 / 30 A
- Protective measures
- Overload protection = Yes
- Short-circuit proof = Yes
- Variant
- 24 VDC, COM = Connector
- Shield connection = No
- Terminal connection cross section
- Flexible and fine-stranded wires
- With wire end sleeve = 0.25 to 6 mm²
- Approbation data
- UL/C-UL-US = 22 to 10 AWG
- CSA = 22 to 10 AWG
- Quantity = 2
- Max. line length between two expansion modules = 5 m
Alarm contacts
- Type
- Alarm contact 1 = Normally closed contact
- Alarm contact 2 = Normally open contact
- Electrical isolation
- Alarm contact - ACOPOSmulti module = Yes
- Alarm contact - Alarm contact = Yes
- Protection
- Overload-proof = No
- Short-circuit proof = No
- Quantity = 2
- Nominal voltage = 30 VDC
- Maximum current = 1 A
- Switching delay = 3 ms
- Max. number of switching cycles = 100,000
Operating conditions
- Permissible mounting orientations
- Hanging vertically = Yes
- Horizontal, face up = Yes
- Standing horizontally = No
- Installation elevation above sea level
- Nominal = 0 to 500 m
- Maximum = 4000 m
- Pollution degree per EN 61800-5-1 = 2 (non-conductive pollution)
- Overvoltage category per EN 61800-5-1 = III
- Degree of protection per EN 60529 = IP20
Ambient conditions
- Temperature
- Operation
- Nominal = 5 to 40°C
- Maximum = 55°C
- Storage = -25 to 55°C
- Transport = -25 to 70°C
- Relative humidity
- Operation = 5 to 85%
- Storage = 5 to 95%
- Transport = Max. 95% at 40°C
