B&R 8BAC0122.000-1 | Industrial Automation Component

SKU: 8BAC0122.000-1
(3)
$863.57
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: Motion control > ACOPOSmulti > Plug-in modules

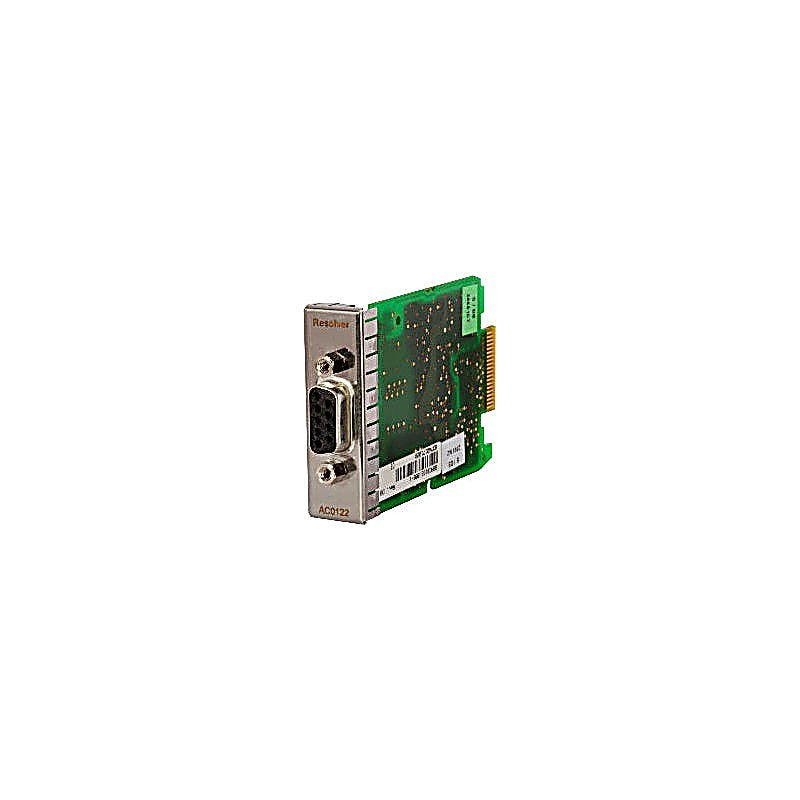

Resolver interface for installation in ACOPOSmulti modules Encoder monitoring High resolution ACOPOSmulti plug-in module, resolver interface 10 kHz.

Technical Specifications

General information

  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • UL = cULus E225616 Power conversion equipment
  • KC = Yes
  • Module type = ACOPOSmulti plug-in module
  • B&R ID code = 0x20B6
  • Slot = Slots 1 and 2
  • Max. power consumption = 1 W

Encoder connection

  • Electrical isolation
  • Encoder - ACOPOSmulti = No
  • Module-side connection = 9-pin male DSUB connector
  • Status indicators = UP/DN LEDs
  • Encoder monitoring = Yes
  • Max. encoder cable length = 100 m

Encoder power supply

  • Protective measures
  • Overload-proof = Yes
  • Short-circuit proof = Yes
  • Output voltage = Typ. 3 V eff
  • Output current = Max. 50 mA eff
  • Frequency = 10 kHz

Position

  • Resolution @ ü = 0.5 = Number of pole pairs * 22600

Analog inputs

  • Digital converter resolution = 14-bit
  • Input impedance = 10.4 kΩ - j 11.1 kΩ
  • Input voltage = Resolver transformation ratio: 0.5 ±10%
  • Common-mode voltage = Max. ±20 V
  • Signal transmission = Differential signals

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C
