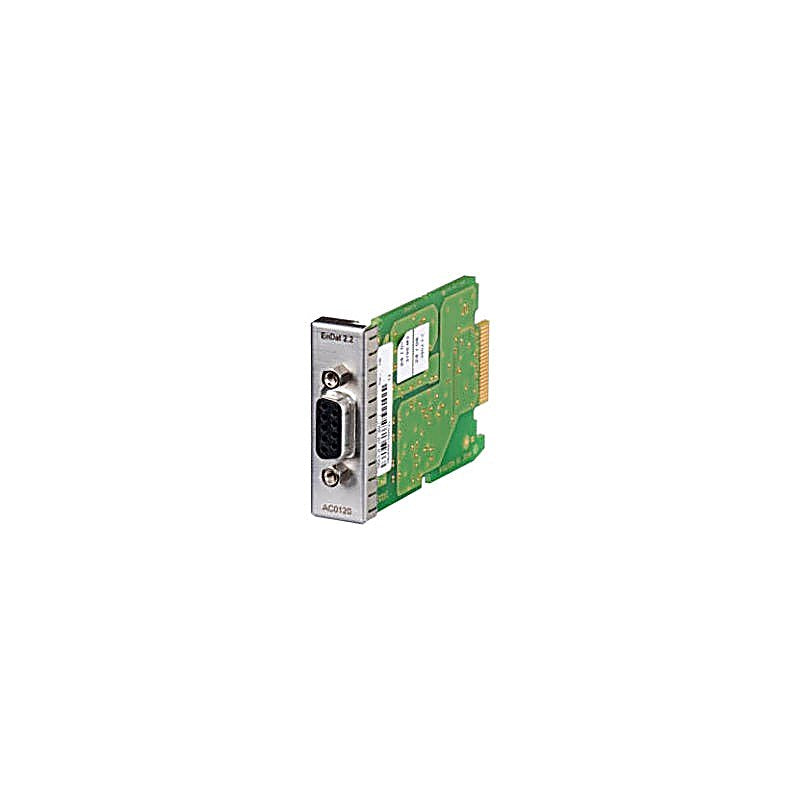

B&R 8BAC0120.001-2 | Industrial Automation Component

SKU: 8BAC0120.001-2
(4)
$863.57
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: Motion control > ACOPOSmulti > Plug-in modules

EnDat 2.2 encoder interface for installation in ACOPOSmulti modules Encoder monitoring Embedded parameter chip when used with B&R motors ACOPOSmulti plug-in module, EnDat 2.2 interface.

Technical Specifications

General information

  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • UL = cULus E225616 Power conversion equipment
  • KC = Yes
  • Module type = ACOPOSmulti plug-in module
  • B&R ID code = 0xB0BF
  • Slot = Slots 1 and 2
  • Max. power consumption = P Module [mW] = 500 mW + 19 V * I Encoder [mA]

Encoder connection

  • Electrical isolation
  • Encoder - ACOPOSmulti = No
  • Module-side connection = 9-pin male DSUB connector
  • Status indicators = UP/DN LEDs
  • Encoder monitoring = Yes
  • Max. encoder cable length = 100 m Depends on the cross section of the power supply wires in the encoder cable

Encoder power supply

  • Protective measures
  • Overload-proof = Yes
  • Short-circuit proof = Yes
  • Output voltage = Typ. 12.5 V
  • Load capacity = 350 mA

Synchronous serial interface

  • Signal transmission = RS485
  • Baud rate = 6.25 Mbit/s

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C
