B&R 8BAC0120.000-1 | Industrial Automation Component

SKU: 8BAC0120.000-1
(1)
$684.75
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: Motion control > ACOPOSmulti > Plug-in modules

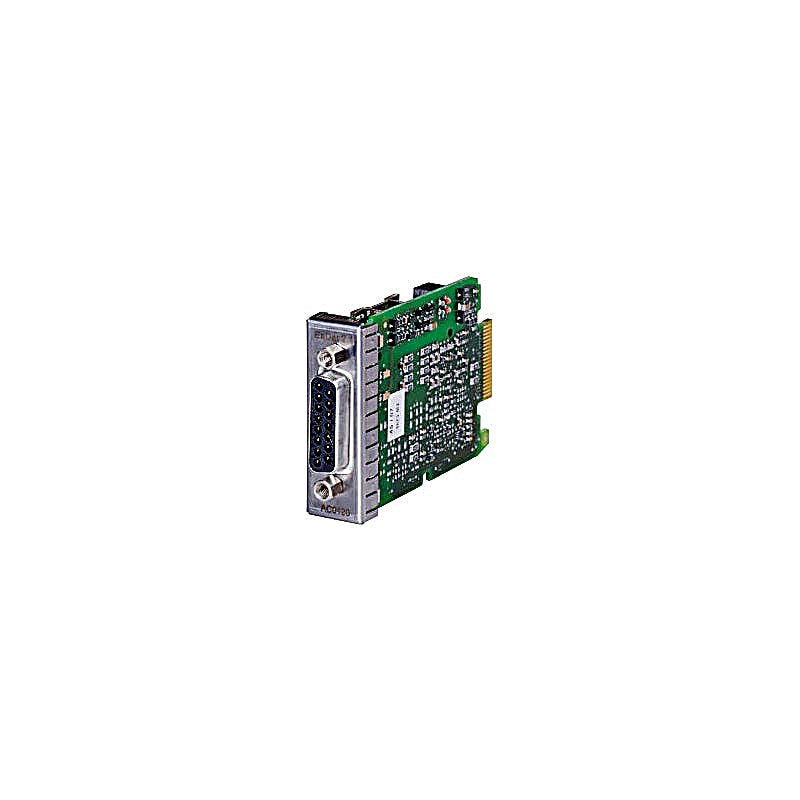

EnDat 2.1 encoder interface for installation in ACOPOSmulti modules Encoder monitoring High-precision analog signal processing Embedded parameter chip when used with B&R motors ACOPOSmulti plug-in module, EnDat 2.1 interface.

Technical Specifications

General information

  • Power consumption
  • Depends on connected encoder = Yes
  • E0 ... EnDat single-turn, 512 lines = Max. 4 W
  • E1 ... EnDat multi-turn, 512 lines = Max. 4 W
  • E2 ... EnDat single-turn, 32 lines (inductive) = Max. 4 W
  • E3 ... EnDat multi-turn, 32 lines (inductive) = Max. 4 W
  • E4 ... EnDat single-turn, 512 lines = Max. 4 W
  • E5 ... EnDat multi-turn, 512 lines = Max. 4 W
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • UL = cULus E225616 Power conversion equipment
  • KC = Yes
  • Module type = ACOPOSmulti plug-in module
  • B&R ID code = 0x22EF
  • Slot = Slots 1 and 2

Encoder inputs

  • Electrical isolation
  • Encoder - ACOPOSmulti = No
  • Sine/Cosine inputs
  • Signal transmission = Differential signals, symmetrical
  • Signal frequency (-3 dB) = DC up to 300 kHz
  • Signal frequency (-5 dB) = DC up to 400 kHz
  • Common-mode voltage = Max. ±7 V
  • Terminating resistor = 120 Ω
  • Resolution = 12-bit
  • Quantity = 1
  • Module-side connection = 15-pin male DSUB connector
  • Status indicators = UP/DN LEDs
  • Encoder monitoring = Yes
  • Max. encoder cable length = 75 m

Encoder power supply

  • Output voltage = 5 V ±5%
  • Load capacity = 250 mA
  • Sense lines = 2, compensation of max. 2x 0.7 V

Position

  • Resolution @ 1 V SS = Number of encoder lines * 5700

Synchronous serial interface

  • Signal transmission = RS485
  • Data transfer rate = 781.25 kbit/s

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C
