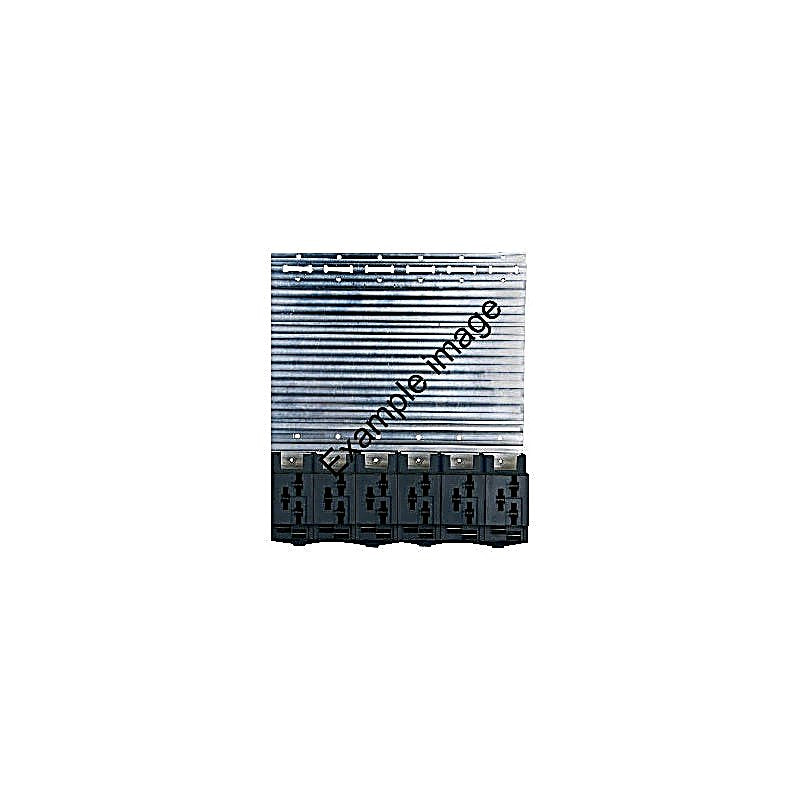

B&R 8B0M0110HW00.000-1 | Industrial Automation Component

SKU: 8B0M0110HW00.000-1
(4)
$12,541.50
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: Motion control > ACOPOSmulti > Mounting plates > Wall mounting

Pioneering power distribution system Integrated distribution of power and auxiliary power supply Shockproof Option slots possible ACOPOSmulti mounting plate with backplane, 11 slots, AS, wall mounting, 75 mm² and 22 mm², complete.

Technical Specifications

General information

  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = Not applicable
  • UL = cULus E225616 Power conversion equipment
  • Number of slots = 11
  • Cooling and mounting type = Wall mounting

DC bus connection

  • Voltage
  • Nominal = 750 VDC
  • Reduction of continuous power depending on installation elevation
  • Starting at 500 m above sea level = 20 kW per 1000 m
  • Cross section
  • DC+, DC- = 72 mm²
  • PE = 72 mm²
  • Continuous power = 200 kW

24 VDC auxiliary supply

  • Reduction of continuous power depending on installation elevation
  • Starting at 500 m above sea level = 150 W per 1000 m
  • Cross section
  • 24 VDC, COM = 21.3 mm²
  • Voltage = 25 VDC ±1.6%
  • Continuous power = 1500 W
  • Max. power consumption per slot (P Fan8B0M... ) = 8.25 W

Operating conditions

  • Permissible mounting orientations
  • Hanging vertically = Yes
  • Horizontal, face up = Yes
  • Standing horizontally = No
  • Installation elevation above sea level
  • Nominal = 0 to 500 m
  • Maximum = 4000 m
  • Pollution degree per EN 61800-5-1 = 2 (non-conductive pollution)
  • Overvoltage category per EN 61800-5-1 = III
  • Evenness of mounting surface = Evenness of 1 mm over the entire mounting surface
  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C

Mechanical properties

  • Dimensions
  • Width = 588.5 mm
  • Height = 385 mm
  • Depth = 13.5 mm
  • Weight = 5.8 kg
