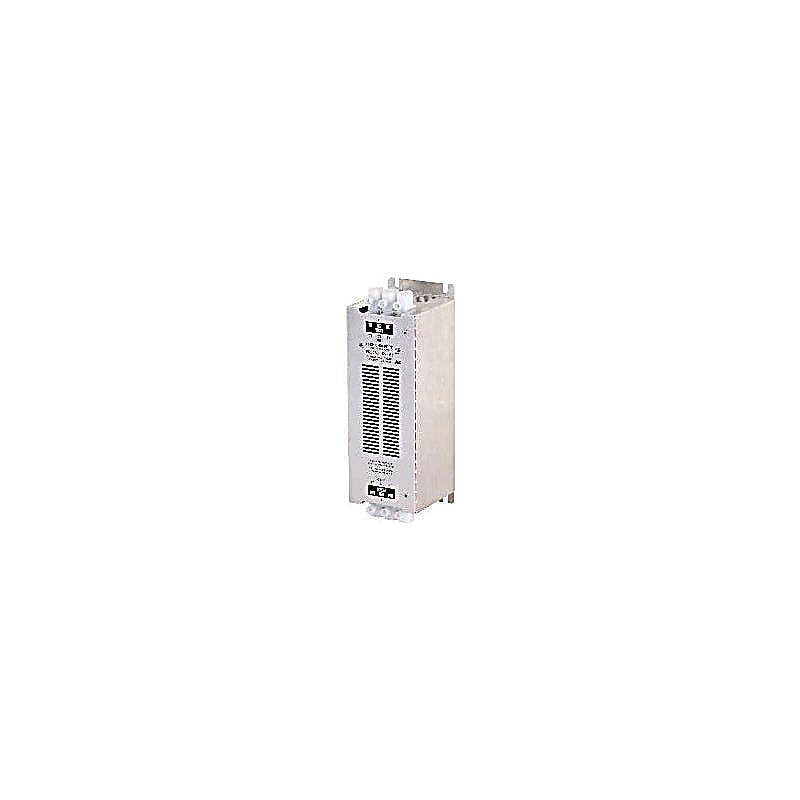

B&R 8B0F0550H000-000-1 | Industrial Automation Component

SKU: 8B0F0550H000-000-1
(1)
$992.69
-13% $1,141.59 $992.69
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: Motion control > ACOPOS P3 > Passive line filter

Wide mains input voltage range Optimally suited for ACOPOSmulti 8B0P power supply modules Compliance with limit values per CISPR11, group 2, class A Line filter, passive, 55 A, 3x 520 VAC, 50/60 Hz, IP20.

Technical Specifications

General information

  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = Not applicable
  • UL = cULus E225616 Power conversion equipment
  • KC = Yes
  • Cooling and mounting type = Wall mounting

Mains connection

  • Reduction of continuous current depending on ambient temperature
  • Starting at 50°C = 0.565 A/K
  • Reduction of continuous current depending on installation elevation
  • Starting at 1000 m above sea level = 2.75 A eff per 1000 m
  • Variant
  • Shield connection
  • On mains = No
  • On device = No
  • L1, L2, L3 and L1´, L2´, L3´ = Terminals
  • PE = M6 threaded bolt
  • Terminal connection cross section
  • Flexible and fine-stranded wires
  • With wire end sleeve = Max. 16 mm²
  • Approbation data
  • UL/C-UL-US = 4 AWG
  • CSA = 4 AWG
  • Permissible network configurations = TT, TN
  • Mains input voltage = Max. 3x 520 VAC
  • Frequency = Max. 60 Hz
  • Continuous current = 55 A eff
  • Peak current = 82.5 A eff (<1 min), 1x/h
  • Power dissipation = 25.9 W
  • Line filter per EN 61800-3, category C3 = Yes

Electrical properties

  • Discharge capacitance = 0.4 µF
  • Leakage current = 33 mA

Operating conditions

  • Permissible mounting orientations
  • Hanging vertically = Yes
  • Horizontal, face up = Yes
  • Standing horizontally = No
  • Installation elevation above sea level
  • Nominal = 0 to 1000 m
  • Maximum = 4000 m
  • Pollution degree per EN 61800-5-1 = In preparation
  • Overvoltage category per IEC 60950 = II
  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C

Mechanical properties

  • Dimensions
  • Width = 85 mm
  • Height = 250 mm
  • Depth = 90 mm
  • Vibration and shock = 3M4 per IEC 60721-3-3
  • Weight = 2 kg
