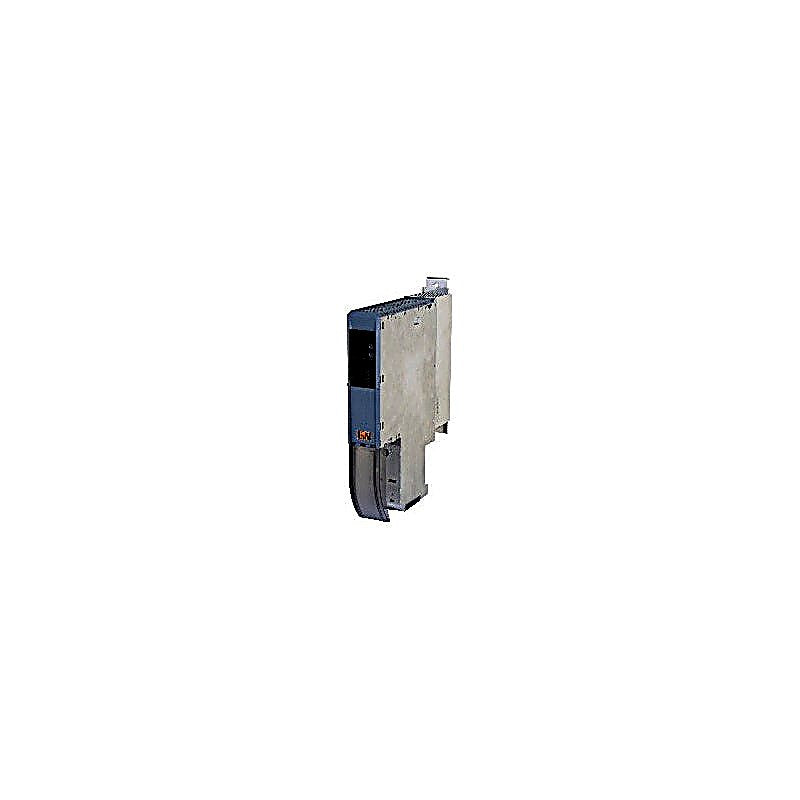

B&R 8B0C0160HW00.000-1 | Industrial Automation Component

Category: Motion control > ACOPOSmulti > Auxiliary supply modules 400W > Wall mounting

Extensive protective measures ACOPOSmulti auxiliary supply module, 16 A, AS, wall mounting.

Technical Specifications

General information

• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• UL = cULus E225616 Power conversion equipment
• KC = Yes
• Cooling and mounting type = Wall mounting

DC bus connection

• Voltage
• Nominal = 750 VDC
• Operating range in continuous operation = 260 to 800 VDC
• Full continuous power = 315 to 800 VDC
• Continuous power consumption = Max. 445 W
• Power dissipation with continuous power = 22 W (0% continuous power) 27 W (50% continuous power) 45 W (100% continuous power)
• DC bus capacitance = 220 nF
• Variant = ACOPOSmulti backplane

24 VDC output

• Output voltage
• DC bus voltage (U DC ): 260 to 315 VDC = 25 VDC * (U DC / 315)
• DC bus voltage (U DC ): 315 to 800 VDC = 24 VDC ±6%
• Reduction of continuous power depending on installation elevation
• Starting at 500 m above sea level = 40 W per 1000 m
• Continuous power = 400 W
• Continuous current = 16 ADC
• Reduction of continuous power at ambient temperatures starting at 40°C = No reduction
• Reduction of continuous power depending on cooling method = No reduction
• Startup delay = Max. 1 s
• Startup time = Approx. 5 to 20 ms
• Residual ripple = Typ. 50 mV SS

24 VDC internal system power supply

• Peak current (<4 s)
• DC bus voltage (U DC ): 350 to 800 VDC = 21 ADC
• Protective measures
• No-load proof = Yes
• Overload-proof = Yes
• Short-circuit proof = Yes
• Feedback protection = Max. 26 VDC (also when the power is switched off)
• Overtemperature protection = Yes
• Dielectric strength to ground = ±50 VDC
• Output/Input isolation = SELV / PELV requirements
• Output voltage = 25 VDC ±1.6%
• Variant = ACOPOSmulti backplane

Operating conditions

• Permissible mounting orientations
• Hanging vertically = Yes
• Horizontal, face up = Yes
• Standing horizontally = No
• Installation elevation above sea level
• Nominal = 0 to 500 m
• Maximum = 4000 m
• Pollution degree per EN 61800-5-1 = 2 (non-conductive pollution)
• Overvoltage category per EN 61800-5-1 = III
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Nominal = 5 to 40°C
• Maximum = 55°C
• Storage = -25 to 55°C
• Transport = -25 to 70°C
• Relative humidity
• Operation = 5 to 85%
• Storage = 5 to 95%
• Transport = Max. 95% at 40°C

Mechanical properties

• Dimensions
• Depth
• Wall mounting = 263 mm
• Width = 53 mm
• Height = 317 mm
• Weight = Approx. 3 kg
• Module width = 1
