B&R 8AC123-60-1 | Industrial Automation Component

SKU: 8AC123-60-1
(5)
$827.69
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: Motion control > ACOPOS > Plug-in modules

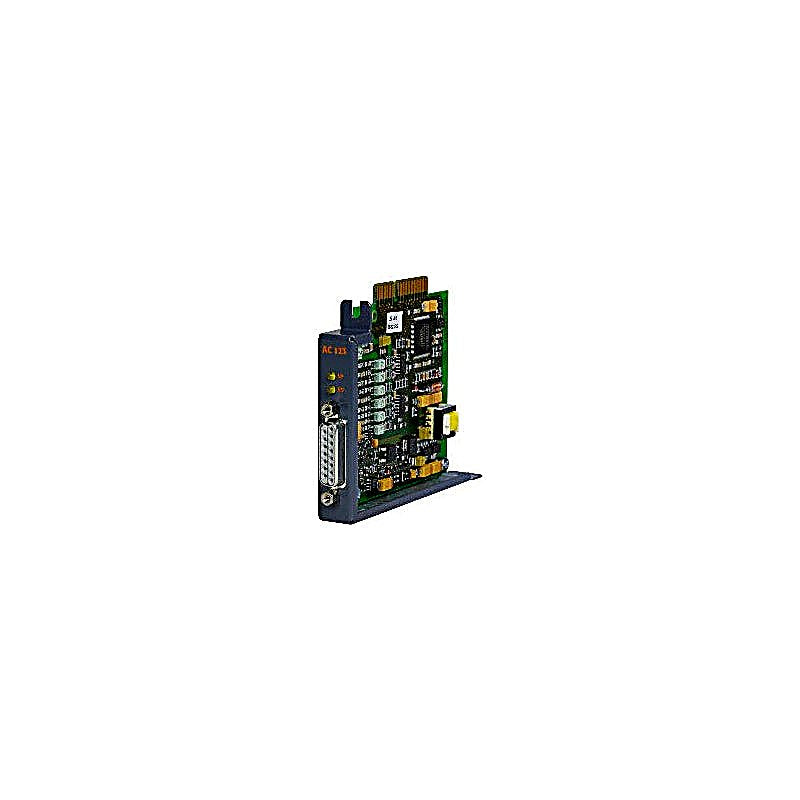

Incremental encoder and SSI absolute encoder interface for installation in ACOPOS servo drives Monitors encoder input signals Encoder supply voltage of 5V or 15V Compensates for a voltage drop at 5 V encoder voltage supply ACOPOS plug-in module, incremental encoder and SSI absolute encoder interface.

Technical Specifications

General information

  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = Non-compliant
  • UL = cULus E225616 Power conversion equipment
  • KC = Yes
  • Module type = ACOPOS plug-in module
  • B&R ID code = 0x1067
  • Slot = Slots 2, 3 and 4
  • Power consumption = Max. 7.5 W Depends on the current consumption of the connected encoder

Encoder inputs

  • Electrical isolation
  • Encoder - ACOPOS = Yes
  • Quantity = 1
  • Signal transmission = Differential signal transfer
  • Module-side connection = 15-pin female DSUB
  • Status indicators = UP/DN LEDs
  • Encoder monitoring = Yes
  • Max. encoder cable length = 50 m

Encoder power supply

  • Load capacity
  • 5 VDC = 350 mA
  • 15 VDC = 350 mA
  • Sense lines
  • For 5 VDC = Yes, 2, compensation of max. 2 V
  • For 15 VDC = No
  • Supply voltages = Internal, optionally 5 V / 15 V
  • Short-circuit proof, overload protection = Yes

Incremental encoders

  • Differential voltage inputs A, B, R
  • Minimum = 2.5 V
  • Maximum = 6 V
  • Counter size = 32-bit
  • Input frequency = Max. 200 kHz
  • Evaluation = 4x
  • Signal form = Square wave pulse
  • Counter frequency = Max. 800 kHz
  • Reference frequency = Max. 200 kHz
  • Distance between edges = Min. 0.6 µs
  • Inputs = A, A\, B, B\, R, R\

SSI absolute encoder

  • Differential voltage clock output - 120 Ω
  • Minimum = 2.5 V
  • Maximum = 5 V
  • Differential voltage data input
  • Maximum = 6 V
  • Coding = Gray, binary
  • Baud rate = 200 kbit/s
  • Word size = Max. 31-bit

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C
