B&R 8AC120-60-1 | Industrial Automation Component

SKU: 8AC120-60-1
(2)
$700.25
-33% $1,041.64 $700.25
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: Motion control > ACOPOS > Plug-in modules

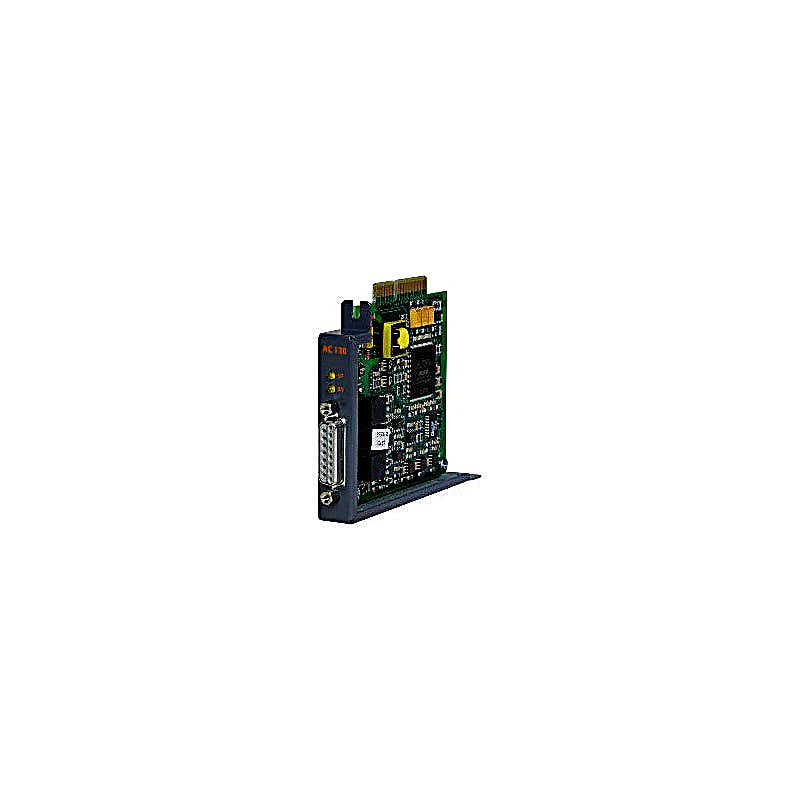

EnDat 2.1 encoder interface for installation in ACOPOS servo drives Encoder monitoring Also suitable for evaluating simple incremental encoders with sinusoidal input signal ACOPOS plug-in module, EnDat encoder and sine incremental encoder interface.

Technical Specifications

General information

  • Power consumption
  • Depends on connected encoder = Yes
  • E0 ... EnDat single-turn, 512 lines = Max. 2.3 W
  • E1 ... EnDat multi-turn, 512 lines = Max. 3.1 W
  • E2 ... EnDat single-turn, 32 lines (inductive) = Max. 3.1 W
  • E3 ... EnDat multi-turn, 32 lines (inductive) = Max. 3.1 W
  • E4 ... EnDat single-turn, 512 lines = Max. 2.4 W
  • E5 ... EnDat multi-turn, 512 lines = Max. 2.7 W
  • E8 ... EnDat single-turn, 16 lines (inductive) = Max. 2.9 W
  • E9 ... EnDat multi-turn, 16 lines (inductive) = Max. 3.1 W
  • EA ... EnDat single-turn, 32 lines (inductive) = Max. 2.7 W
  • EB ... EnDat multi-turn, 32 lines (inductive) = Max. 3.0 W
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = Non-compliant
  • UL = cULus E225616 Power conversion equipment
  • KC = Yes
  • Module type = ACOPOS plug-in module
  • B&R ID code = 0x0FCC
  • Slot = Slots 2, 3 and 4

Encoder inputs

  • Electrical isolation
  • Encoder - ACOPOS = No
  • Encoder power supply
  • Output voltage = Typ. 5 V
  • Load capacity = 250 mA
  • Sense lines = 2, compensation of max. 2x 0.7 V
  • Sine/Cosine inputs
  • Signal transmission = Differential signals, symmetrical
  • Signal frequency (-3 dB) = DC up to 300 kHz
  • Signal frequency (-5 dB) = DC up to 400 kHz
  • Differential voltage = 0.5 to 1.25 V ss
  • Common-mode voltage = Max. ±7 V
  • Terminating resistor = 120 Ω
  • Resolution = 16384 * Number of encoder lines
  • Accuracy = -
  • Reference input
  • Signal transmission = Differential signal, symmetrical
  • Differential voltage for low = ≤-0.2 V
  • Differential voltage for high = ≥+0.2 V
  • Serial interface
  • Signal transmission = Synchronous
  • Protocol = RS485
  • Baud rate = 625 kbaud
  • Quantity = 1
  • Module-side connection = 15-pin female DSUB
  • Status indicators = UP/DN LEDs
  • Encoder monitoring = Yes
  • Max. encoder cable length = 50 m

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C
