PNOZ s30 24-240VACDC 2 n/o 2 n/c
| Approval | CCC CE UKCA cULus Listed EAC (Eurasian) TÜV |
| Supply voltage (V) | 24 240 |
| Type of supply voltage U1 | DC |
| Power consumption AC | 9 |
| Power consumption DC | 5.5 |
| Supply voltage U2 | 48 240 |
| Type of supply voltage U2 | AC |
| Max. device circuit breaker | P_GERAETEABSICH_MAX_Max-Leiterquerschnitt |
| Prog. mon.fun. wo hyst prox sw | P_NS_F_UEBERWACH_PROGR_OHNE_HY_10 mHz - 1.000 kHz |
| Number of incremental encoder | 1 1 |
| Connection (increment encoder) | P_IG_ANSCHLUSS_RJ-45-Buchsenstecker, 8polig |
| Phase pos. diff.sign. inc.enc. | P_IG_EIN_PHASE_DIFF_SIGNALE_90° ±30° |

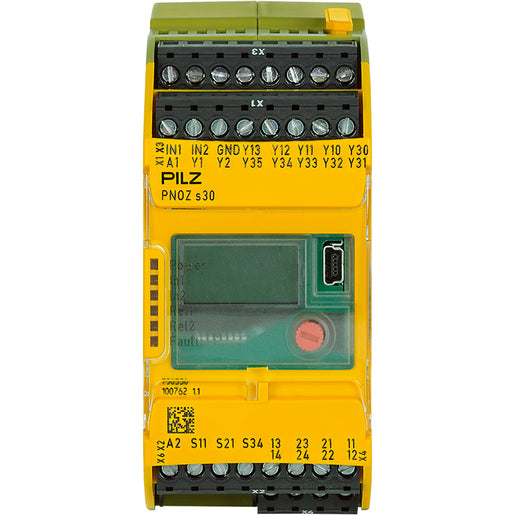

PNOZsigma safety relay (standalone), inputs: incremental encoder, proximity switch, outputs: 2 N/O, 2 N/C, UB: 24 -240 V AC/DC, width: 45 mm, monitoring of standstill, speed, speed range, position, direction, analogue voltage (track S), display handling push & turn, plug-in screw terminals, expansion with PNOZsigma contact expansion.
