Siemens 6XV1878-2D | Industrial Automation Component
Product Type: Industrial Automation Component
General
| Article number |
6XV1878-2D |
| product type designation |
IE FC TP Torsion Cable GP 4X2 (AWG 24, Type C) |
| product description |
highly flexible bus cable (8-wire), sold by the meter, unassembled |
IE FC TP torsion cable 4x2; (PROFINET type C), Cat6A; TP installation cable, 8-core, for use in highly flexible applications (torsion), sold by the meter, max. delivery unit 1000 m, minimum order quantity 20 m.
| product brand name |
SIMATIC NET |
| Technical Product Detail Page |
https://i.siemens.com/1P6XV1878-2D |
| suitability for use |
Continuous motion control when using robots |
| cable designation |
SF/UTP, 2YH(ST)D11Y 4X2X0.6/1.04-100 LI VZN GN |
| wire length |
sold by the meter |
attenuation factor per length
| ● at 10 MHz / maximum |
0.089 dB/m |
| ● at 100 MHz / maximum |
0.287 dB/m |
| ● at 250 MHz / maximum |
0.466 dB/m |
| ● at 300 MHz / maximum |
0.514 dB/m |
| ● at 500 MHz / maximum |
0.679 dB/m |
impedance
| ● at 1 MHz ... 100 MHz |
100 Ω |
near-end crosstalk per length
| ● at 1 MHz ... 100 MHz |
0.453 dB/m |
| ● at 1 MHz … 250 MHz |
0.393 dB/m |
| ● at 1 MHz ... 300 MHz |
0.381 dB/m |
| ● at 1 MHz ... 500 MHz |
0.348 dB/m |
| coupling loss / at 30 MHz … 100 MHz / minimum |
80 dB |
| transfer impedance per length / at 10 MHz |
80 mΩ/m |
| loop resistance per length / maximum |
180 mΩ/m |
| insulation resistance coefficient |
5000 GΩ·m |
operating voltage
| ● RMS value |
80 V |
| ● maximum |
80 V |
| NVP value in percent |
69 % |
mechanical data
| number of electrical cores |
8 |

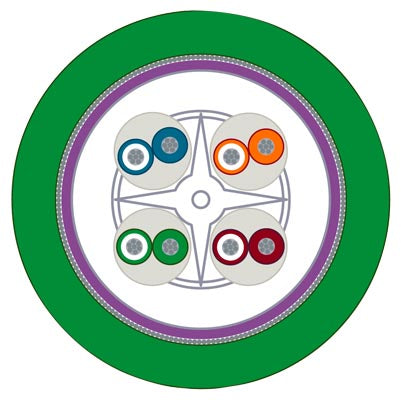

| design of the shield |
SF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires |
| type of electrical connection / FastConnect |
Yes |
core diameter
| ● of AWG24 insulated conductor |
0.51 mm |
outer diameter
| ● of inner conductor |
0.58 mm |
| ● of the wire insulation |
1.04 mm |
| ● of the inner sheath of the cable |
6.4 mm |
| ● of cable sheath |
8 mm |
| symmetrical tolerance of the outer diameter / of cable sheath |
0.2 mm |
material
| ● of the wire insulation |
polyethylene (PE) |
| ● of the inner sheath of the cable |
FRNC |
| ● of cable sheath |
PUR |
color
| ● of the insulation of data wires |
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| ● of cable sheath |
green |
bending radius
| ● with single bend / minimum permissible |
32 mm |
| ● with multiple bends / minimum permissible |
64 mm |
| number of torsion cycles / with torsion by ± 180° on 1 m cable length |
5000000 |
| tensile load / maximum |
100 N |
| weight per length |
77 kg/km |
ambient temperature
| ● during operation |
-30 ... +80 °C |
| ● during storage |
-40 ... +80 °C |
| ● during transport |
-40 ... +80 °C |
| ● during installation |
-30 ... +80 °C |
| ● note |
In fixed installation -40 °C to 80 °C |
| fire behavior |
flame resistant according to IEC 60332-1-2 |
| class of burning behaviour / according to EN 13501-6 |
Eca |
chemical resistance
| ● to mineral oil |
oil resistant according to IEC 60811-404 (7x24h/90°C) |
| ● to grease |
Conditional resistance |
| ● to water |
conditional resistance |
| radiological resistance / to UV radiation |
resistant |
product feature
| ● halogen-free |
Yes; halogen-free according to IEC 61754-1 |
| ● PoE capability |
Yes |
| ● PoE+ capability |
Yes |
| ● PoE++ capability |
Yes |
| ● silicon-free |
Yes |
wire length / for Industrial Ethernet
| ● with 100BaseTX |
100 m |
| ● with 1000BaseT |
100 m |
| ● for 10GBase T |
90 m |
test voltage
| ● at AC / core-to-core |
2000 V |
| ● at AC / core shield |
2000 V |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating |
Yes; c(ETL)us CMX, AWM-Style 21329 |
| UL/ETL style / 600 V Rating |
Yes |
certificate of suitability
| ● EAC approval |
Yes |
| ● CE marking |
Yes |
| ● RoHS conformity |
Yes |
product conformity
| ● ANSI/TIA-EIA 568-B.2 Cat.5e |
Yes |
| ● IEC 61784-5-2-CP 2/2 (Ethernet/IP) |
Yes |
| standard for structured cabling |
Cat6A |
| ● resistance to air pollution / conformity according to ANSI/ISA-71.04 |
Yes; G3 |
Marine classification association
| ● American Bureau of Shipping Europe Ltd. (ABS) |
No |
| ● French marine classification society (BV) |
No |
| ● Det Norske Veritas (DNV) |
No |
| ● Germanische Lloyd (GL) |
No |
| ● Lloyds Register of Shipping (LRS) |
No |
| ● Nippon Kaiji Kyokai (NK) |
No |
| ● Polski Rejestr Statkow (PRS) |
No |
internet link
| ● to website: Selection guide for cables and connectors |
https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| ● to web page: selection aid TIA Selection Tool |
https://www.siemens.com/tstcloud |
| ● to web page: SiePortal |
https://sieportal.siemens.com/ |
| ● to website: Image database |
https://www.automation.siemens.com/bilddb |
| ● to website: CAx-Download-Manager |
https://www.siemens.com/cax |
| ● to website: Industry Online Support |
https://support.industry.siemens.com |
security information
| security information |
Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are industrial. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
General Product Approval
| EU declaration of conformity |
Yes |
| Manufacturer Declaration |
Yes |
| EU declaration of conformity |
Yes |
Environment
| Environmental Confirmations |
Yes |
| Environmental Confirmations |
Yes |
| last modified: |
3/10/2026 |
| Date8/3/2026 |
Subject to change without notice© Copyright Siemens 2026 |
