B&R 6PPT30-0702-20W | Industrial Automation Component

SKU: 6PPT30-0702-20W
(3)
$3,920.45
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Category: HMI > Power Panel T-Series and C-Series > Power Panel T-Series > Power Panel T30

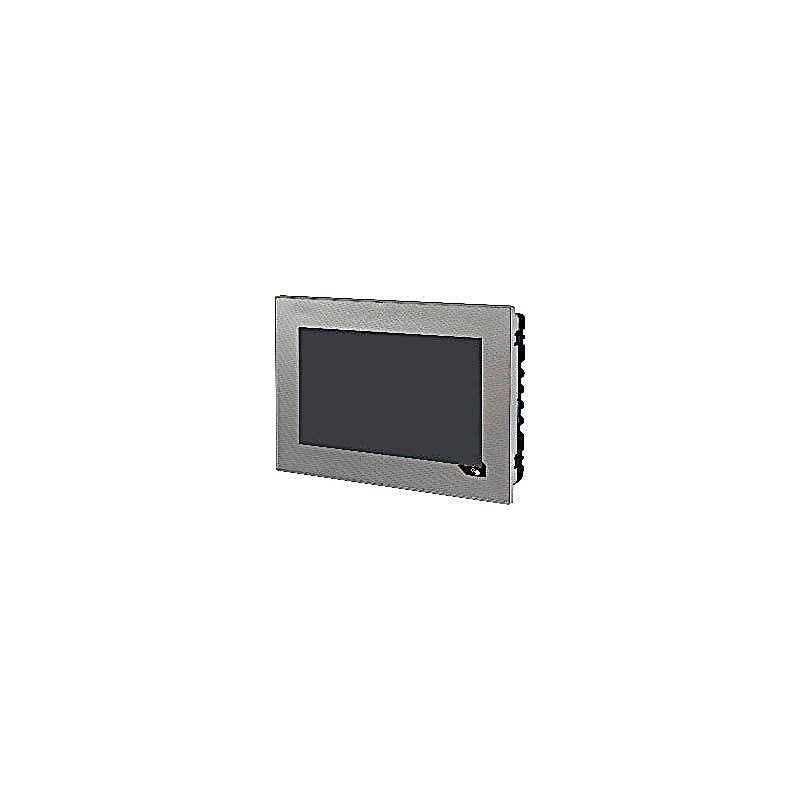

Power Panel T30, 7.0", landscape format. CPU and memory: 600 MHz (ARM Cortex-A8), 512 MB onboard flash drive.

Display and touch screen: 7.0", 800 x 480 (WVGA) resolution, analog resistive touch screen, landscape format, aluminum white pinstripe.

Interfaces: 2x Ethernet 10/100 Mbit/s (integrated switch), 2x USB 2.0.

Client software: Integrated service page, VNC client, embedded web browser.

Technical Specifications

General information

  • Support
  • mapp View = Yes
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • UL = cULus E115267 Industrial control equipment
  • DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: A (0.7 g) EMC: B (bridge and open deck)
  • CCS = Yes
  • LR = ENV1
  • KR = Yes
  • ABS = Yes
  • BV = EC31B Temperature: 5 - 55°C Vibration: 0.7 g EMC: Bridge and open deck
  • LEDs = Ethernet
  • B&R ID code = 0xE591
  • Cooling = Passive
  • Power button = No
  • Reset button = No
  • Buzzer = Yes

Controller

  • Processor
  • Type = ARM Cortex-A8
  • Clock frequency = 1 GHz
  • L1 cache = 64 kB
  • L2 cache = 256 kB
  • Operating system = PPT30 system
  • Real-time clock = No
  • Flash = 512 MB
  • Mode/Node switches = No
  • DRAM = 256 MB

Display

  • Viewing angles
  • Horizontal = Direction L / Direction R = Typ. 70°
  • Vertical = Revision ≥ G3: Direction U / Direction D = Typ. 50° Revision < G3: Direction U / Direction D = Typ. 60°
  • Backlight
  • Type = LED
  • Brightness = Typ. 500 cd/m²
  • Half-brightness time = 50,000 h
  • Touch screen
  • Type = AMT
  • Technology = Analog resistive
  • Controller = B&R, 12-bit
  • Transmittance = 80% ±3%
  • Type = TFT color
  • Diagonal = 7.0"
  • Colors = 16.7 million (RGB, 8 bits per channel)
  • Resolution = WVGA, 800 x 480 pixels
  • Contrast = Rev. ≥ G3: Typ. 550:1 Rev. < G3: Typ. 600:1
  • Screen rotation = Yes

Interfaces

  • Interface
  • Transfer
  • Physical layer = 10BASE-T / 100BASE-TX
  • Half-duplex = Yes
  • Full-duplex = Yes
  • Autonegotiation = Yes
  • Auto-MDI/MDIX = Yes
  • Connection = ETH1 (IF1) and ETH2 (IF2)
  • Type = Ethernet
  • Variant = Shielded RJ45 (integrated 2-port switch)
  • Line length = Max. 100 m between 2 stations (segment length)
  • Max. transfer rate = 10/100 Mbit/s
  • Interface IF3
  • Type = USB 2.0
  • Variant = Type A
  • Current-carrying capacity = 0.5 A
  • Interface IF4
  • Current-carrying capacity = 0.2 A

Electrical properties

  • Nominal voltage = 24 VDC
  • Max. current at nominal voltage = 389 mA
  • Max. power consumption = 9.34 W
  • Fuse = 4 A slow-blow, internal
  • Voltage range = 8 to 32 VDC
  • Reverse polarity protection = Yes
  • Electrical isolation = Ethernet (ETH1/IF1 and ETH2/IF2) to other interfaces, power supply and ground

Operating conditions

  • Permissible mounting orientations
  • Standard mounting orientation = Vertical
  • Inclination = ±25°
  • Rotation = In 90° increments (portrait/landscape)
  • Installation elevation above sea level
  • 0 to 2000 m = No limitation
  • >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
  • Degree of protection per EN 60529 = Front: IP65, Back: IP20
  • Degree of protection per UL 50 = Front: Type 4X indoor use only

Ambient conditions

  • Temperature
  • Operation = -20 to 60°C
  • Storage = -20 to 70°C
  • Transport = -20 to 70°C
  • Relative humidity = See temperature/humidity diagram.

Mechanical properties

  • Front
  • Design = Aluminum white pinstripe
  • Dimensions
  • Width = 197 mm
  • Height = 140 mm
  • Depth = 47.8 mm
  • Weight = 0.6 kg
