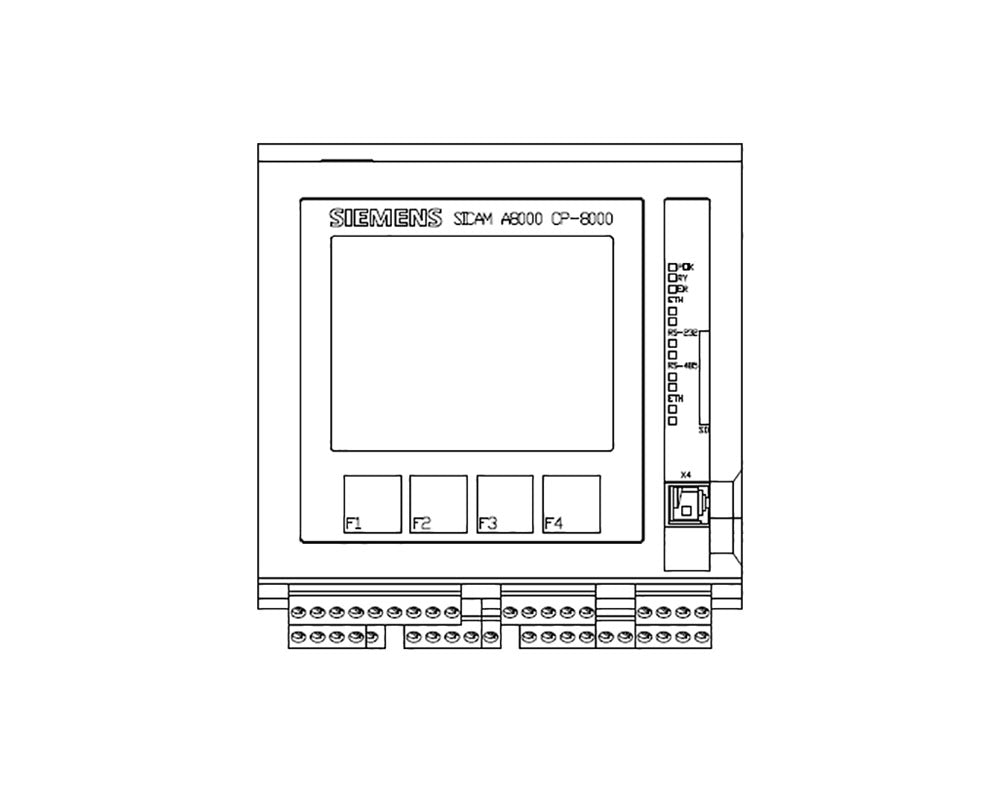

SICAM A8000 CP-8000 24-60VDC -40 BIS +70 GRAD CELSIUS. COMPACT RTU
Product Type: Industrial Automation Component
General
| Article number |
6MF2101-1AB10-0AA0 |
General technical data
| consumed active power / rated value / maximum |
4 300 mW |
| surge voltage / rated value |
4 kV |
| surge voltage resistance |
2.5 kV |
| processor clock frequency |
400 MHz |
| storage capacity / of the RAM |
32 Mbyte |
| product component / hardware real time clock |
Yes |
| accuracy [ppm] / of the hardware real time clock |
5 ppm |
| buffer time / of the hardware real time clock / in case of power failure |
72 h |
Product details
| time resolution |
1 ms |
| number of local IO modules / maximum |
6 |
Measuring functions
Supply voltage
| supply voltage / at DC / rated value |
18 ... 78 V |
| type of voltage / of the supply voltage |
DC |
Inputs / Outputs
| number of isolated input groups |
2 |
| number of digital inputs |
12 |
| type of input voltage / at the inputs |
DC |
| input voltage / at DC / per input |
24 ... 60 V |
| input voltage / per input |
18 ... 70 V |
| product feature / galvanic isolation of the inputs |
Yes |
| number of isolated output groups |
4 |
| number of digital outputs |
8 |
| design of the digital output |
relais |
| type of voltage / at digital output |
AC/DC |
| voltage / at AC / at 50 Hz / per output |
110 ... 120 V |
| voltage / at DC / per output |
24 ... 60 V |
| voltage / per output |
18 ... 253 V |
| consumed current / per output |
5 000 mA |
| switching capacity apparent power / at AC / at 50 Hz |
1 250 VA |
| switching capacity active power / at DC |
0.05 ... 150 W |
| product function / galvanic isolation of the outputs |
Yes |
Communication
| protocol / is supported / Modbus RTU device |
Yes |
| protocol / is supported / PROFIBUS DP device |
No |
| type of mobile wireless service / is supported / GPRS |
No |
| number of ports / of the Ethernet interface |
2 |
| number of interfaces / serial |
2 |
Cybersecurity
| type of communication security / Secure 104 according to IEC 62351-3 |
Yes |
| type of access control / role-based access control (RBAC) |
Yes |
| type of system monitoring / according to SNMP |
Yes |
| product function / logging via Security Eventlog |
Yes |
| service / as web server / HTTPS |
Yes |
| product function / firmware identifier |
Yes |
Time synchronization
| time synchronization / via telecontrol protocol |
Yes |
| time synchronization / via NTP/SNTP |
Yes |
| time synchronization / via IRIG-B |
No |
Mechanical Design
| width |
128 mm |
| height |
124 mm |
| depth |
123 mm |
| product feature / conformal coating |
No |
| product feature / with display |
Yes |
| fastening method / DIN-rail mounting |
Yes |
| fastening method / wall mounting |
No |
| fastening method / rack mounting |
No |
| type of electrical connection |
screw terminal |
| connectable conductor cross-section |
0.2 ... 2.5 mm² |
| material / of the enclosure |
plastic |
| product feature / plug-in terminal blocks |
Yes |
| product function / with function display |
Yes |
| product function / status display |
Yes |
Degree of protection / protection class
| operating resource protection class |
II |
| degree of pollution |
2 |
| protection class IP / on the front |
IP20 |
Environmental conditions
| ambient temperature / during operation |
-40 ... +70 °C |
| ambient temperature / during storage |
-40 ... +85 °C |
| relative humidity |
5 ... 95 % |
| mounting height in relation to mean sea level / maximum |
3 000 m |
| air pressure / maximum |
106 kPa |
Approval certification
| certificate of suitability / CE marking |
Yes |
| certificate of suitability / UL approval |
No |
Applications
This Industrial Automation Component is designed for industrial automation applications, offering reliable performance and compatibility with Siemens automation systems. Suitable for manufacturing, process control, and building automation environments.
